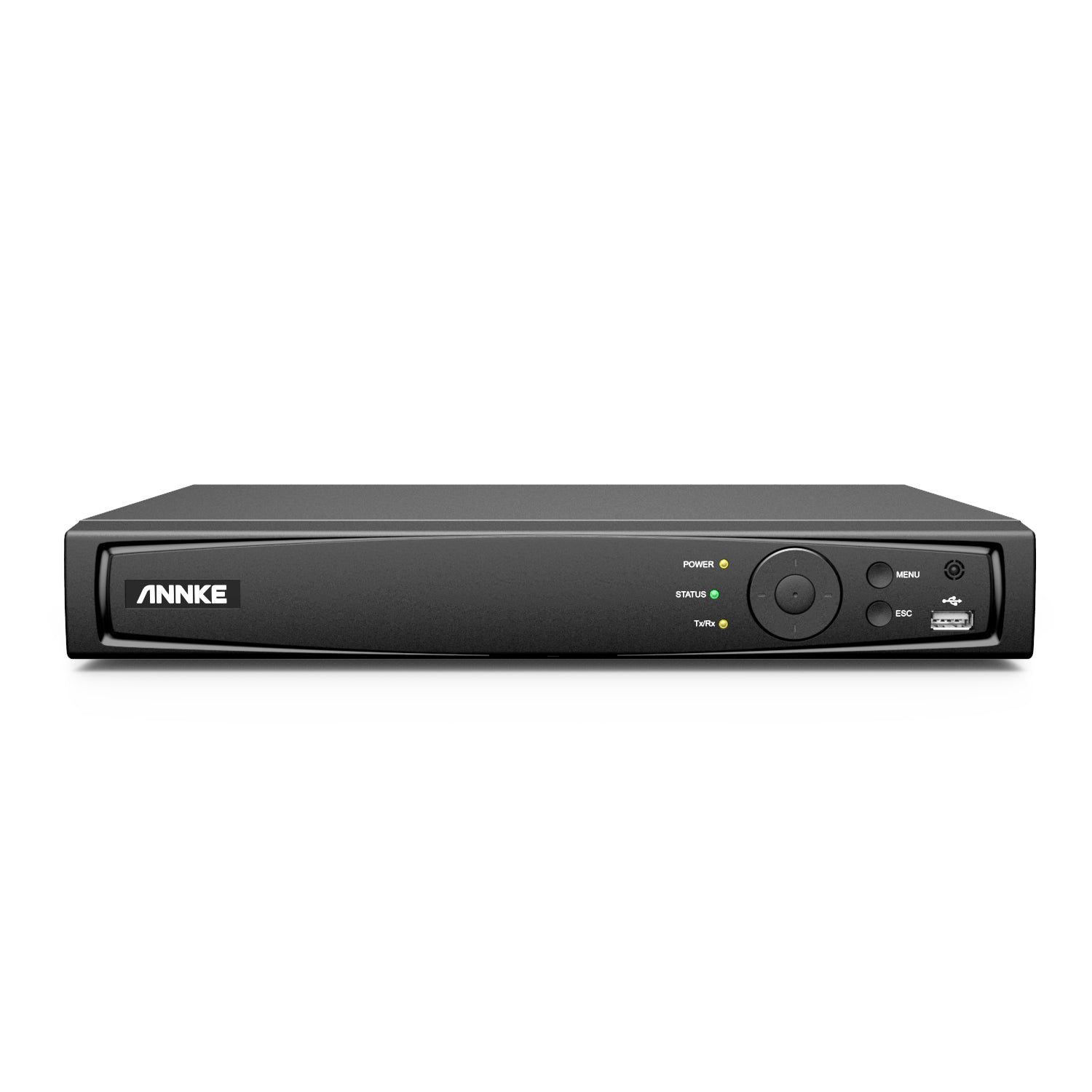

Download N98PBK Specification
Video & Audio
|
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 |
IP Video Input 8CH POE |
|
Video OutputHDMI Up to 4K,VGA Up to 1080P |
Audio Input/Output1/1 RCA |
|
Incoming bandwidth80M |
Max Recording ResolutionUp to 12M(4096x3027) |
|
Max Playback ResolutionUp to 12M(4096x3027) |
Max Playback Channel 8CH |
|
Max Playback Capacity4-ch@1080P, 1-ch@12MP |
|
|
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 |
|
Video OutputHDMI Up to 4K,VGA Up to 1080P |
|
Incoming bandwidth80M |
|
Max Playback ResolutionUp to 8M(3840x2160) |
|
Max Playback Capacity4-ch@1080P, 1-ch@8MP |
|
IP Video Input 8CH POE |
|
Audio Input/Output 1/1 RCA |
|
Max Recording Resolution Up to 8M(3840x2160) |
|
Max Playback Channel 8CH |
|
Hard Drive
|
HDD CapacityUp to 8TB capacity for each HDD |
Network interfaceRJ45x1(10/100M) |
|
HDD8CH: 1 SATA interface |
|
HDD CapacityUp to 6TB capacity for each HDD |
|
HDD8CH: 1 SATA interface |
|
Network interface RJ45x1(10/100M) |
General
|
POE8CH: 8 Ports(IEEE802.3at/af) |
Dimensions(W x H x D) 8CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm |
|
Alarm Input/Output- |
RS485- |
|
USB2x USB 2.0 |
Operating PowerDC48V |
| Power Consumption |
≤10 W(without HDD and POE) |
|
Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C |
Weight (without hard disk)8CH: 2.2lbs / 1KG" |
|
POE: Max 25.5W for single port- |
|
|
POE8CH: 8 Ports(IEEE802.3at/af) |
|
Alarm Input/Output- |
|
USB2x USB 2.0 |
| Power Consumption |
|
Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C |
|
POE: Max 25.5W for single port- |
|
Dimensions(W x H x D) 8CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm |
|
RS485 - |
|
Operating Power DC48V |
| ≤10 W(without HDD and POE) |
|
Weight (without hard disk) 8CH: 2.2lbs / 1KG" |
