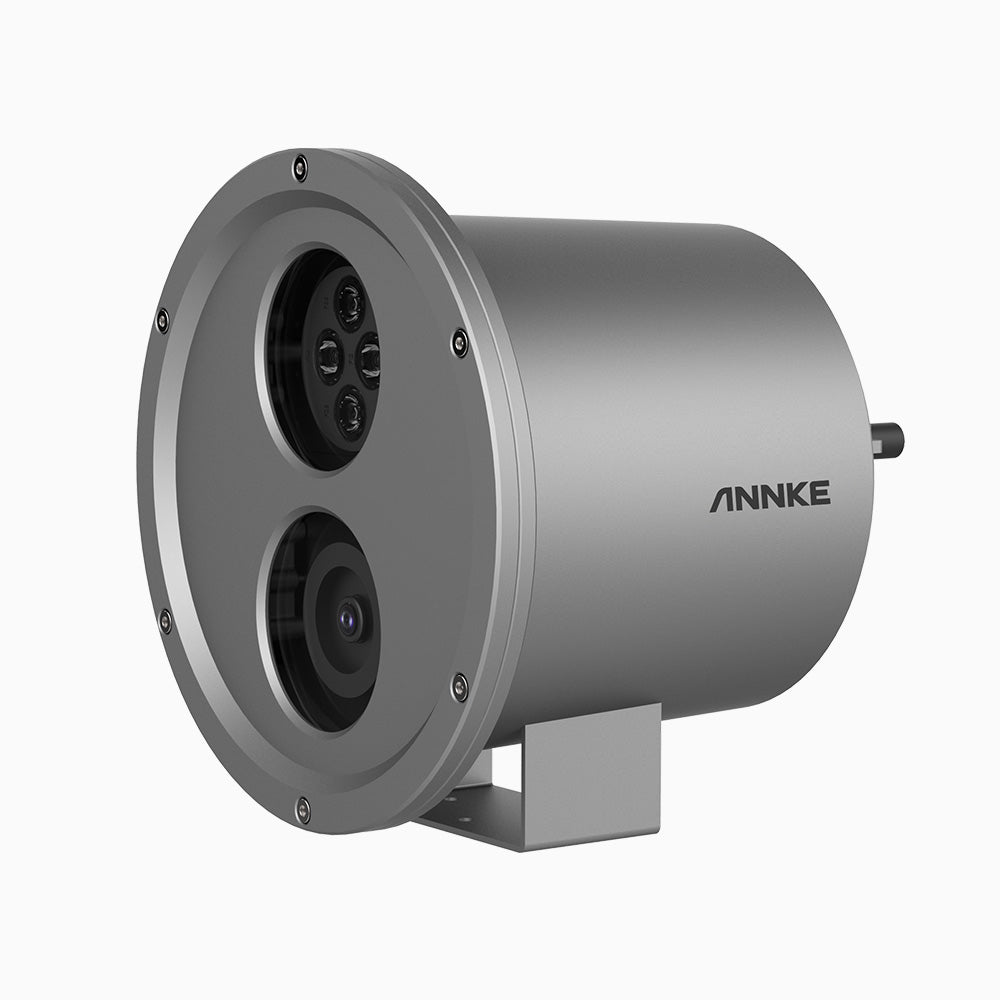

4MP Bullet Underwater Network Camera

4MP Bullet Underwater Network Camera

$2,999.99 MSRP
Model Number: I81HL
  • 316L stainless steel enclosure, anti-Corrosion
  • IP68: the camera can be used under water up to 15 meters
  • H.265+/H.265/H.264+/H.264 encoding
  • Color night vision
  • True WDR technology provides clear imaging even with strong back lighting
    • Contact Sales

    ANNKE brand or unbranded options

    Flexible MOQ & bulk order discounts

    Ready stock for fast delivery

    Reliable after‑sales & technical support

    Specification

    Download I8HL Specification

    Camera
    Image Sensor 1/1.8” progressive scan CMOS
    Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light
    Shutter Speed 1/3 s to 1/100,000 s
    Lens
    Focal Length & FOV Varifocal lens, 3 to 9 mm, horizontal FOV 87° to 45.8°, vertical FOV 46° to 25.6°, diagonal FOV 104° to 52.4°
    Aperture F1.0
    DORI
    DORI Wide: D: 55.2 m, O: 21.9 m, R: 11.0 m, I: 5.5 m
    Tele: D: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.4 m
    Illuminator
    Supplement Light Type White Light
    Supplement Light Range Up to 10 m
    Video
    Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
    Third Stream 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    Video Compression Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    Video Bit Rate 32 Kbps to 8 Mbps
    H.264 Type Baseline profile,main profile,high profile
    H.265 Type Main profile
    Scalable Video Coding (SVC) H.265 and H.264 encoding
    Region of Interest (ROI)  5 fixed regions for each stream
    Target Cropping Yes
    Network
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
    Simultaneous Live View Up to 6 channels
    API Open Network Video Interface, ISAPI, ISUP 5.0
    User/Host Up to 32 users. 3 levels: Administrator, Operator and User
    Client ANNKE Vision
    Web Browser Plug-in required live view: IE10, IE11
    Local service: Chrome 57.0+, Firefox 52.0+
    Network Storage NAS (NFS, SMB/CIFS), ANR
    Image Parameters Switch Yes
    Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
    Day/Night Switch Day, Night, Auto, Schedule
    Wide Dynamic Range (WDR)  120 dB
    Interface
    Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
    On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
    Event
    Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection, unattended baggage detection, object removal detection
    General
    Power 36 VDC ± 20%, 0.6 A, max. 17 W, two-core terminal block
    PoE (802.3.at, Class 3, 42.5 V to 57 V), 0.45 A to 0.3 A, 17 W
    Material SUS 316L Metal
    Dimension 210 mm × 210 mm × 205 mm (8.3" × 8.3" × 8.1")
    Package Dimension 700 mm × 530 mm × 365 mm (27.6" × 20.9" × 14.4")
    Weight Approx. 8.300 kg (18.38 lb.)
    With Package Weight Approx. 12.300 kg (27.12 lb.)
    Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 100% or less (non-condensing)
    General Function Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
    Cable Length  15 m (49.2 ft.) (included)
    Web Client Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    Protection IP68
    Anti-Corrosion   NEMA 4X
