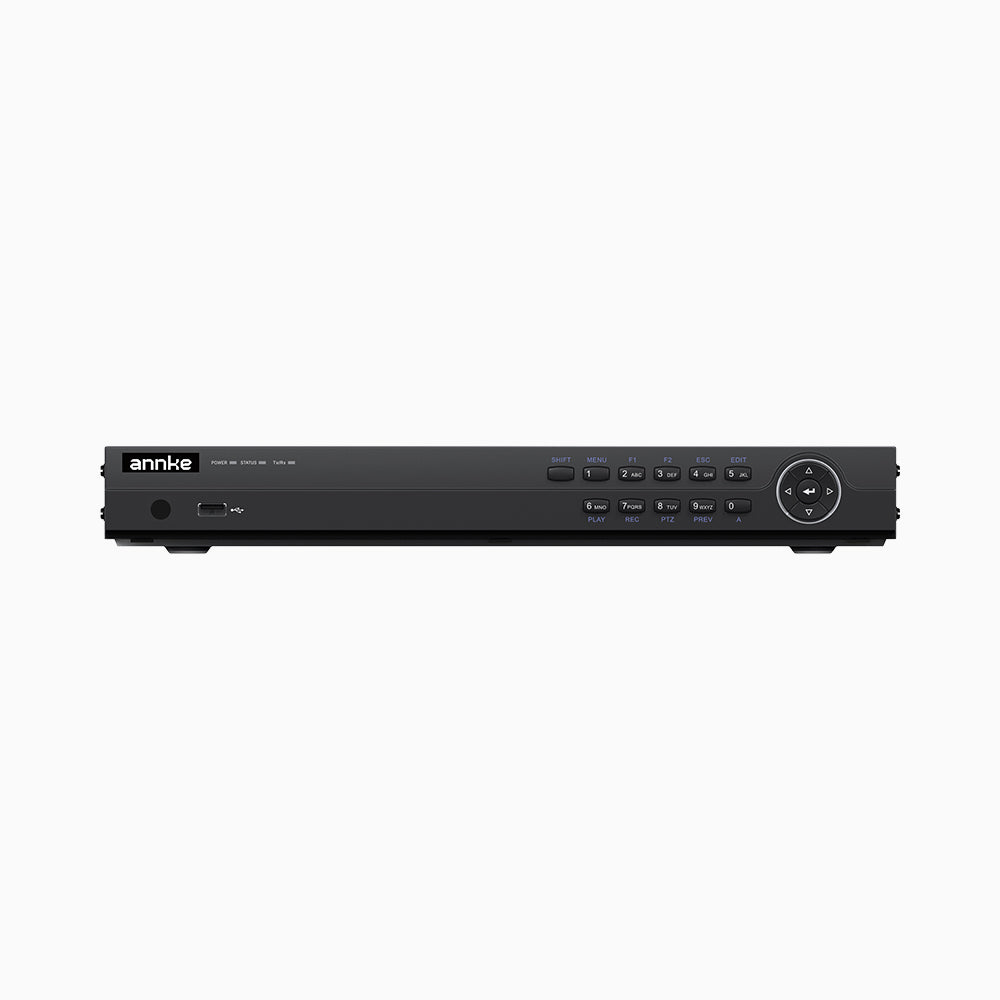

4K 8 Channel H.265+ PoE NVR, Max 160 Mbps Bandwidth
4K 8 Channel H.265+ PoE NVR, Max 160 Mbps Bandwidth
4K 8 Channel H.265+ PoE NVR, Max 160 Mbps Bandwidth

4K 8 Channel H.265+ PoE NVR, Max 160 Mbps Bandwidth

$2,999.99 MSRP
Model Number: N98PBH
  • Live view, recording & playback up to 12 MP resolution
  • Up to 8 channel IP cameras can be connected with built-in PoE inputs
  • Advanced H.265+ Video Compression
  • All channels support Motion Detection 2.0
  • 2-ch video analysis for human and vehicle recognition to reduce false alarm
  • 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
  • Smart search and smart playback to improve the playback efficiency
  • Supports iPhone, iPad, Android mobile remote monitoring
  • Connectable to the third-party network cameras
  • HDMI Video output at up to 4K (3840 × 2160) resolution
  • Annke Vision for easy remote view
  • Provide independent HDMI and VGA outputs
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download N98PBH Specification

    N98PBH NVR
    Decoding FormatH.264/H.264+/H.265/H.265+ IP Video Input8CH PoE
    Video OutputHDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080),independent output Audio Input/Output1/1 RCA
    Incoming/outgoing Bandwidth80/160 Mbps Max Playback Channel8CH
    Max Recording ResolutionUp to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) Max Playback ResolutionUp to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
    Motion Detection 2.0 by IP camera8-ch (Need IP camera support motion 2.0) Motion Detection 2.0 by NVR8-ch (IP camera does not need to support motion 2.0)
    Max Playback CapacityAI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)
    AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)    		 Smart Event by IP camera8-ch line crossing detection, intrusion detection, region entrance detection, region exiting
    detection,facial recognition,throwing objects from building, ANPR, VCA(Need IP camera support)
    Smart Event by NVR2-ch line crossing detection, intrusion detection, region entrance detection, region exiting detection (IP camera does not need to support these function but the resolution cannot exceed 4MP) Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4
    MB, total capacity ≤ 1 GB)
    Facial Detection and Analytics1-ch, 8 MP,Face picture comparison, human face capture, face picture search Face Picture Comparison4-ch
    NoteFacial recognition, motion detection 2.0 or perimeter protection cannot be enabled at the same time. Network Interface1, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
    HDD2 SATA Interface HDD CapacityUp to 10 TB capacity for each HDD
    PoE8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at Alarm In/Out4/1
    USB interfaceUSB 2.0*2 Operating PowerDC 48 V 2.5A
    Power Consumption≤15 W (Without HDD and PoE) Working Temperature10 °C to 55 °C (14 °F to 131 °F)
    Dimensions (W X H X D)385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0") Weight (Without Hard Disk) ≤ 3 kg
    Decoding FormatH.264/H.264+/H.265/H.265+
    IP Video Input8CH PoE
    Video OutputHDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080),independent output
    Audio Input/Output1/1 RCA
    Incoming/outgoing Bandwidth80/160 Mbps
    Max Playback Channel8CH
    Max Recording ResolutionUp to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
    Max Playback ResolutionUp to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
    Motion Detection 2.0 by IP camera8-ch (Need IP camera support motion 2.0)
    Motion Detection 2.0 by NVR8-ch (IP camera does not need to support motion 2.0)
    Max Playback CapacityAI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)
    AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)
    Smart Event by IP camera8-ch line crossing detection, intrusion detection, region entrance detection, region exiting
    detection,facial recognition,throwing objects from building, ANPR, VCA(Need IP camera support)
    Smart Event by NVR2-ch line crossing detection, intrusion detection, region entrance detection, region exiting detection (IP camera does not need to support these function but the resolution cannot exceed 4MP)
    Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4
    MB, total capacity ≤ 1 GB)
    Facial Detection and Analytics1-ch, 8 MP,Face picture comparison, human face capture, face picture search
    Face Picture Comparison4-ch
    NoteFacial recognition, motion detection 2.0 or perimeter protection cannot be enabled at the same time.
    Network Interface1, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
    HDD2 SATA Interface
    HDD CapacityUp to 10 TB capacity for each HDD
    PoE8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
    Alarm In/Out4/1
    USB interfaceUSB 2.0*2
    Operating PowerDC 48 V 2.5A
    Power Consumption≤15 W (Without HDD and PoE)
    Working Temperature10 °C to 55 °C (14 °F to 131 °F)
    Dimensions (W X H X D)385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
    Weight (Without Hard Disk) ≤ 3 kg
