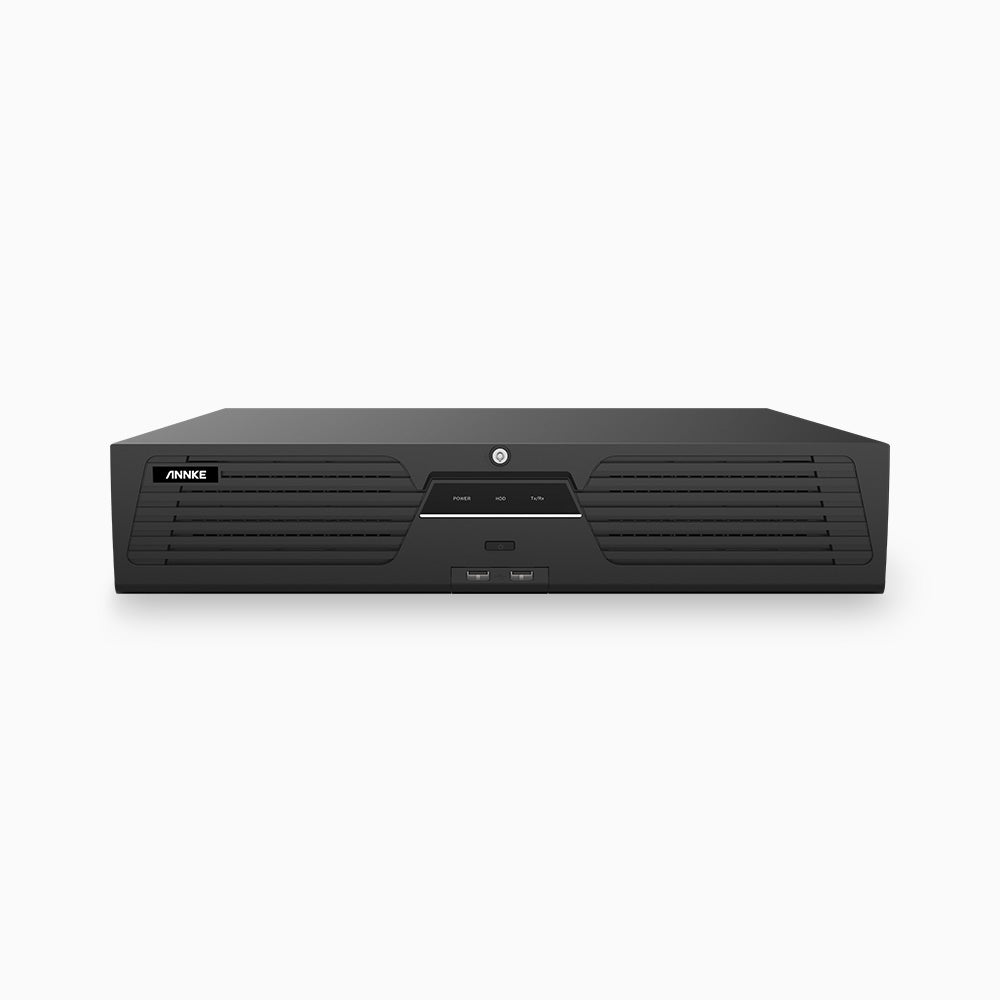

4K 64 Channel 2U Non-PoE NVR Recorder

4K 64 Channel 2U Non-PoE NVR Recorder

$1,999.99 MSRP
Model Number: N951BC
  • Up to 64-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
  • Up to 8-ch IP speakers can be connected
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download N951BC Specification

    Model Number N951BC
    NVR
    Video & Audio Decoding Format H.264+/H.264/H.265/H.265+
    IP Video Input 64-ch
    Video Output HDMI 1 up to 8K,  HDMI 2 up to 4K, VGA 1 & VGA 2 up to 1080p, CVBS
    Audio Input/Output 2/1 RCA
    Incoming & Outgoing Bandwidth 400/400Mbps
    Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3MP/1080p
    Synchronous Playback 16-CH
    Decoding Capability 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
    Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
    Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
    UPnP™, HTTP, HTTPS
    Hard Drive HDD 8 SATA Interface, 1 eSATA interface
    HDD Capacity Up to 14 TB Capacity for Each HDD
    RAID Type RAID0, RAID1, RAID5, RAID6, RAID10
    External Interface Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    Serial Interface 1 RS-485 (full-duplex), 1 RS-232
    Alarm Input/Output 16/9
    Power output Ctrl 12V 1A& DC 12V 1A
    USB Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
    General Operating Power 100 to 240 VAC, 50 to 60 Hz
    Max. Power 200 W
    Power Consumption ≤ 50 W (without HDD)
    Chassis 2U chassis
    Working Temperature 14 °F ~ 131 °F/-10 °C ~+55 °C
    Dimensions (W X H X D) 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
    Weight (Without Hard Disk)  ≤ 10 kg (22 lb)
