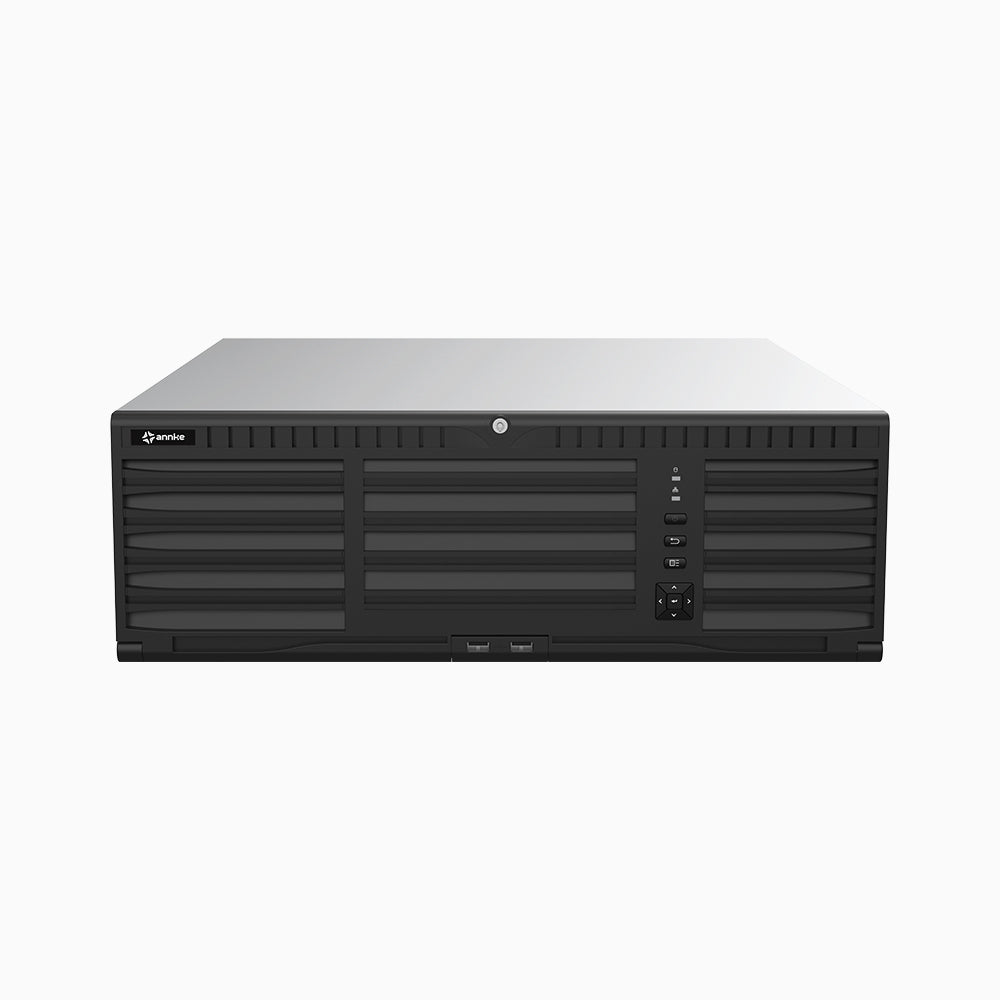

4K 256 Channel 2U Non-PoE NVR Recorder

4K 256 Channel 2U Non-PoE NVR Recorder

$7,999.99 MSRP
Model Number: N84SBN
  • Up to 256 channel IP cameras can be connected.
  • Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected.
  • 2 HDMI (different source) and 1 VGA interfaces.
  • 16 HDD can be used for continuous video recording.
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera.
  • Advanced streaming technology enables smooth live view in poor network conditions.
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks.
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download N84SBN Specification

    N84SBN NVR
    IP Video Input256-ch Incoming Bandwidth (RAID Mode)768 Mbps
    Outgoing Bandwidth768 Mbps Incoming Bandwidth768 Mbps
    Outgoing Bandwidth (RAID Mode)768 Mbps TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
    HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
    LCD OutputOptional: One 7 inch LCD Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
    Two-Way Audio1-ch. RCA (2.0 Vp-p, 1 KΩ) Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
    Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF

    *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.    		 Decoding Capability1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)

    *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
    Synchronous PlaybackUp to 16 channels Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
    Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
    RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10) SATA16 SATA interfaces supporting hot-plug
    ESATA1 × eSATA interface Mini SAS2 × mini SAS interface (optional)
    CapacityUp to 10 TB for each HDD Serial InterfaceRS-232; RS-485; Keyboard
    USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0 Alarm In/Out16/8
    Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs. Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
    Consumption≤ 140W Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
    Working Humidity10% to 90% Dimension (W × D × H)442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
    Weight≤ 16 kg (35.3 lb)
    IP Video Input256-ch
    Incoming Bandwidth (RAID Mode)768 Mbps
    Outgoing Bandwidth768 Mbps
    Incoming Bandwidth768 Mbps
    Outgoing Bandwidth (RAID Mode)768 Mbps
    TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
    HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
    VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
    LCD OutputOptional: One 7 inch LCD
    Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
    Two-Way Audio1-ch. RCA (2.0 Vp-p, 1 KΩ)
    Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
    Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF

    *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
    Decoding Capability1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)

    *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
    Synchronous PlaybackUp to 16 channels
    Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
    Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
    Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
    RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10)
    SATA16 SATA interfaces supporting hot-plug
    ESATA1 × eSATA interface
    Mini SAS2 × mini SAS interface (optional)
    CapacityUp to 10 TB for each HDD
    Serial InterfaceRS-232; RS-485; Keyboard
    USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
    Alarm In/Out16/8
    Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
    Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
    Consumption≤ 140W
    Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
    Working Humidity10% to 90%
    Dimension (W × D × H)442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
    Weight≤ 16 kg (35.3 lb)
