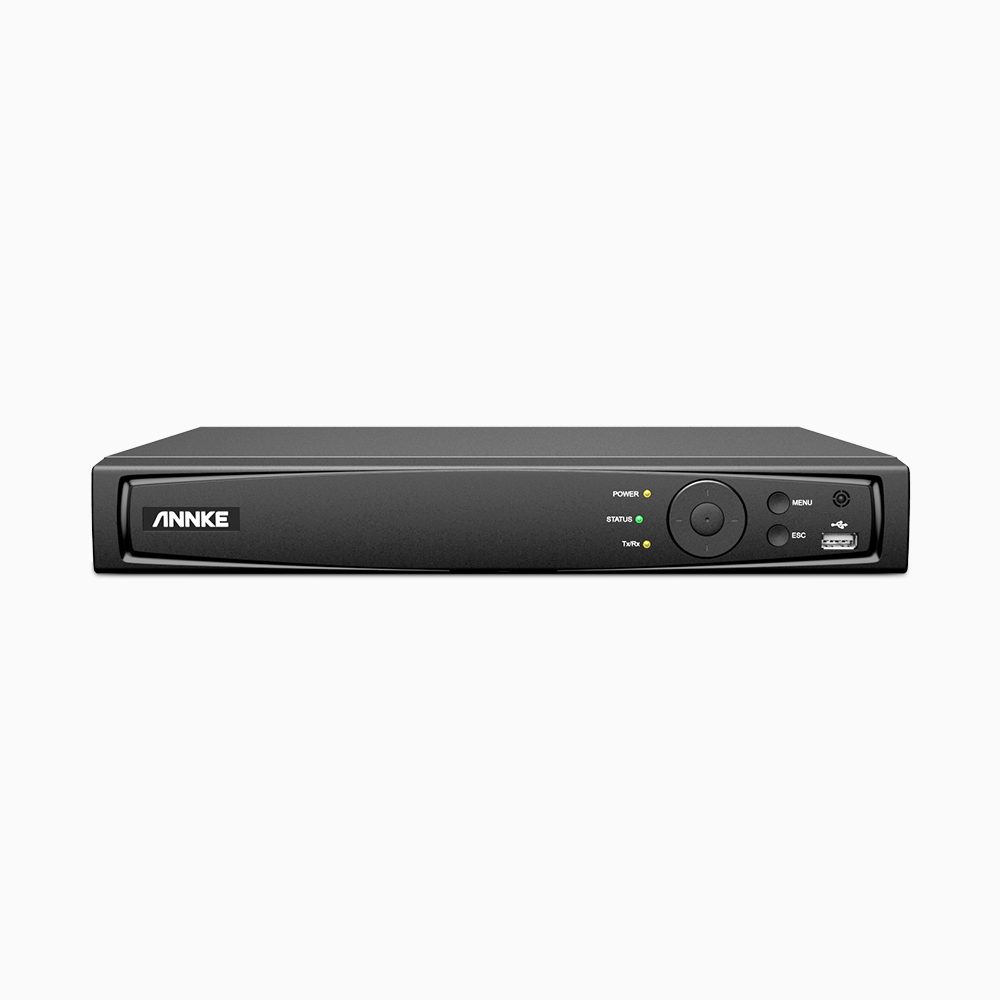

16 Channel 4K H.265+ PoE NVR

16 Channel 4K H.265+ PoE NVR

$339.99 MSRP
Model Number: N46PCK
  • Live view, recording & playback up to 12 MP resolution
  • Up to 16 channel IP cameras can be connected with built-in PoE inputs
  • Advanced H.265+ Video Compression
  • Supports iPhone, iPad, Android mobile remote monitoring
  • Connectable to the third-party network cameras
  • HDMI Video output at up to 4K (3840 × 2160) resolution
  • 2 SATA interfaces connectable for recording and backup
  • Annke Vision for easy remote view
  • Support 4-ch Human and vehicle targets detection
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download N46PCK Specification

    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 16CH POE
    Video OutputHDMI Up to 4K,VGA Up to 1080P Audio Input/Output1/1 RCA
    Incoming bandwidth80M Max Recording ResolutionUp to 12M(4096x3072)
    Max Playback ResolutionUp to 12M(4096x3072) Max Playback Channel8CH/ 16CH
    Max Playback Capacity4-ch@1080P, 1-ch@12MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI Up to 4K,VGA Up to 1080P
    Incoming bandwidth80M
    Max Playback ResolutionUp to 8M(3840x2160)
    Max Playback Capacity4-ch@1080P, 1-ch@8MP
    IP Video Input 8CH/ 16CH POE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8M(3840x2160)
    16CH
    Hard Drive
    HDD CapacityUp to 8TB capacity for each HDD Network interfaceRJ45x1(10/100/1000M)
    HDD8CH: 1 SATA interface
    16CH: 2 SATA interface
    HDD CapacityUp to 6TB capacity for each HDD
    HDD8CH: 1 SATA interface
    16CH: 2 SATA interface
    Network interface RJ45x1(10/100/1000M)
    General
    POE8CH: 8 Ports(IEEE802.3at/af)
    16CH: 16 Ports(IEEE802.3at/af)    		 Dimensions(W x H x D) 8CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
    16CH: 15.2” x 12.4” x 2.0” / 385 x 315 x 52mm
    Alarm Input/Output- RS485-
    USB2x USB 2.0 Operating PowerDC48V
    Power Consumption ≤10 W(without HDD and POE)
    Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C Weight (without hard disk)8CH: 2.2lbs / 1KG" / 16CH: 6.6lbs / 3KG
    POE: Max 25.5W for single port-
    POE8CH: 8 Ports(IEEE802.3at/af)
    16CH: 16 Ports(IEEE802.3at/af)
    Alarm Input/Output-
    USB2x USB 2.0
    Power Consumption
    Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C
    POE: Max 25.5W for single port-
    Dimensions(W x H x D) 8CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
    16CH: 15.2” x 12.4” x 2.0” / 385 x 315 x 52mm
    RS485 -
    Operating Power DC48V
    ≤10 W(without HDD and POE)
    Weight (without hard disk) 8CH: 2.2lbs / 1KG" / 16CH: 6.6lbs / 3KG
