Download I91DB Specification
I91BD Camera
|
Image Sensor1/1.8" Progressive Scan CMOS |
Video CompressionH.265+/H.265/H.264+/H.264 |
Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Video Bitrate32 Kbps ～ 16 Mbps |
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Input/Output1X Built-in Microphone; 1X built-in Speaker |
Environment Noise FilteringYes |
|
Lens2.8 mm |
Min. Illumination0.003 Lux@(F2.0, AGC On) |
|
Angle of ViewHorizontal FOV: 110°, Vertical FOV: 57°, Diagonal FOV: 134° |
Number of Infrared LEDs2 pcs |
|
Night Vision DistanceUp to 100 ft/30 m |
DNR3D DNR |
|
Wide Dynamic Range120 dB WDR |
Network StorageLocal Storage & NAS (NFS, SMB/CIFS) |
|
ONVIFSupport |
Day/Night SwitchDay, Night, Auto, Schedule |
|
EthernetRJ45 X1 (10 M/100 M) |
|
|
Image Sensor1/1.8" Progressive Scan CMOS |
Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Video Bitrate32 Kbps ～ 16 Mbps |
|
Audio Input/Output1X Built-in Microphone; 1X built-in Speaker |
|
Lens2.8 mm |
|
Angle of ViewHorizontal FOV: 110°, Vertical FOV: 57°, Diagonal FOV: 134° |
|
Night Vision DistanceUp to 100 ft/30 m |
|
Wide Dynamic Range120 dB WDR |
|
ONVIFSupport |
|
EthernetRJ45 X1 (10 M/100 M) |
|
Video Compression H.265+/H.265/H.264+/H.264 |
Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Environment Noise Filtering Yes |
|
Min. Illumination 0.003 Lux@(F2.0, AGC On) |
|
Number of Infrared LEDs 2 pcs |
|
DNR 3D DNR |
|
Network Storage Local Storage & NAS (NFS, SMB/CIFS) |
|
Day/Night Switch Day, Night, Auto, Schedule |
I91BD General
|
HousingPlastic & Metal |
ColorWhite |
|
Operating PowerPoE (802.3af), 12 V DC ± 25% |
StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware ResetYes |
Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/OutdoorIndoor/Outdoor |
Weatherproof RatingIP67 |
|
Dimension (L X W X H)72.9 mm X 73.3 mm X 191.1 mm (2.9" X 2.9" X 7.5") |
WeightApprox. 595 g (1.3 lbs.) |
|
HousingPlastic & Metal |
|
Operating PowerPoE (802.3af), 12 V DC ± 25% |
|
Hardware ResetYes |
|
Indoor/OutdoorIndoor/Outdoor |
|
Dimension (L X W X H)72.9 mm X 73.3 mm X 191.1 mm (2.9" X 2.9" X 7.5") |
|
Color White |
|
Storage Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
|
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C |
|
Weatherproof Rating IP67 |
|
Weight Approx. 595 g (1.3 lbs.) |

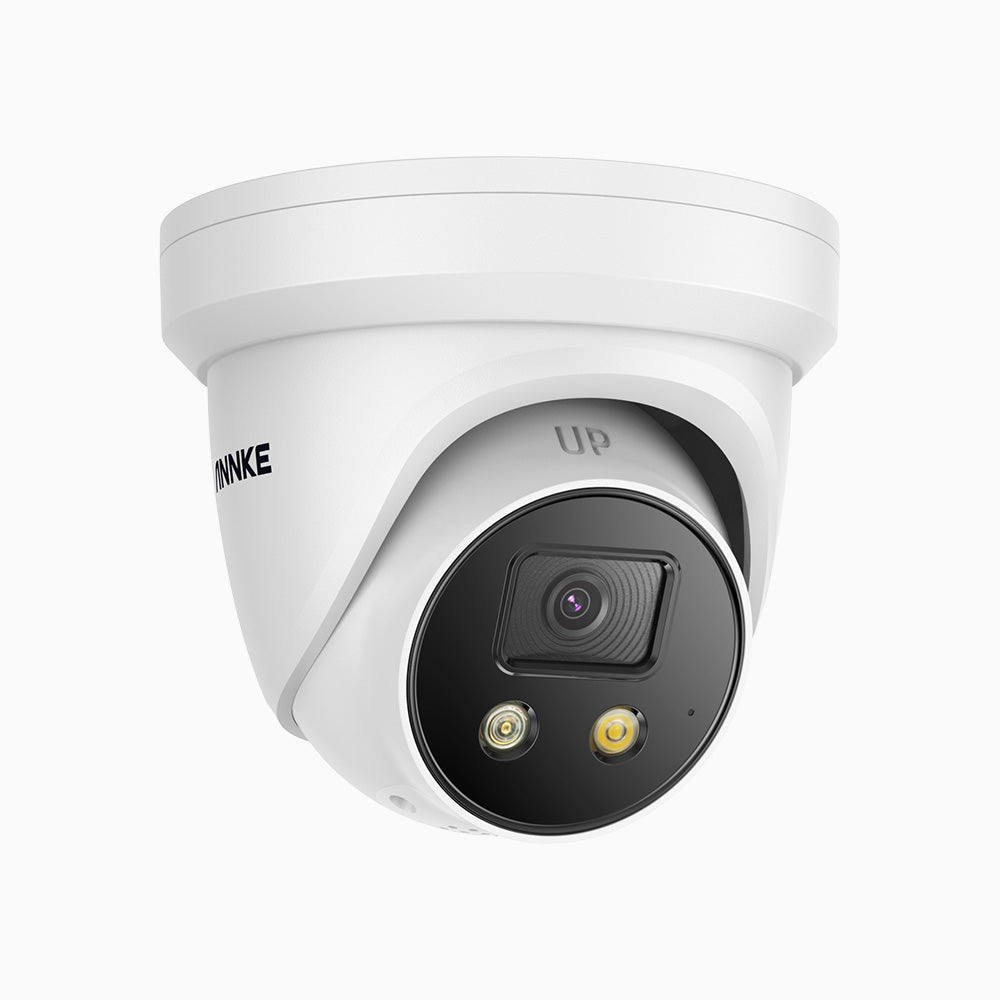

I91BL Camera
|
Image Sensor1/1.8" Progressive Scan CMOS |
Video CompressionH.265+/H.265/H.264+/H.264 |
Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Video Bitrate32 Kbps ～ 16 Mbps |
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Input/Output1X Built-in Microphone; 1X Built-in Speaker |
Environment Noise FilteringYes |
|
Lens2.8 mm |
Min. Illumination0.003 Lux@(F2.0, AGC On) |
|
Angle of ViewHorizontal FOV: 111°; Vertical FOV: 59°; Diagonal FOV; 134° |
Number of Infrared LEDs2 pcs |
|
Night Vision DistanceUp to 100 ft/30 m |
DNR3D DNR |
|
Wide Dynamic Range120 dB WDR |
Network StorageLocal Storage & NAS (NFS, SMB/CIFS) |
|
ONVIFSupport) |
EthernetRJ45 X1 (10 M/100 M) |
|
Image Sensor1/1.8" Progressive Scan CMOS |
Video Resolution50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Video Bitrate32 Kbps ～ 16 Mbps |
|
Audio Input/Output1X Built-in Microphone; 1X Built-in Speaker |
|
Lens2.8 mm |
|
Angle of ViewHorizontal FOV: 111°; Vertical FOV: 59°; Diagonal FOV; 134° |
|
Night Vision DistanceUp to 100 ft/30 m |
|
Wide Dynamic Range120 dB WDR |
|
ONVIFSupport) |
|
Video Compression H.265+/H.265/H.264+/H.264 |
Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Environment Noise Filtering Yes |
|
Min. Illumination 0.003 Lux@(F2.0, AGC On) |
|
Number of Infrared LEDs 2 pcs |
|
DNR 3D DNR |
|
Network Storage Local Storage & NAS (NFS, SMB/CIFS) |
|
Ethernet RJ45 X1 (10 M/100 M) |
I91BL General
|
HousingPlastic & Metal |
Operating PowerPoE (802.3af), 12 V DC ± 25% |
|
StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
Hardware ResetYes |
|
Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
Indoor/OutdoorIndoor/Outdoor |
|
Weatherproof RatingIP67 |
Hardware ResetYes |
|
Dimension (L X W X H)Ø 138.3 mm X 124.5 mm (Ø 5.4" X 4.9") |
WeightApprox. 840 g (1.9 lbs.) |
|
HousingPlastic & Metal |
|
StorageBuilt-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
|
Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
|
Weatherproof RatingIP67 |
|
Dimension (L X W X H)Ø 138.3 mm X 124.5 mm (Ø 5.4" X 4.9") |
|
Operating Power PoE (802.3af), 12 V DC ± 25% |
|
Hardware Reset Yes |
|
Indoor/Outdoor Indoor/Outdoor |
|
Hardware Reset Yes |
|
Weight Approx. 840 g (1.9 lbs.) |
