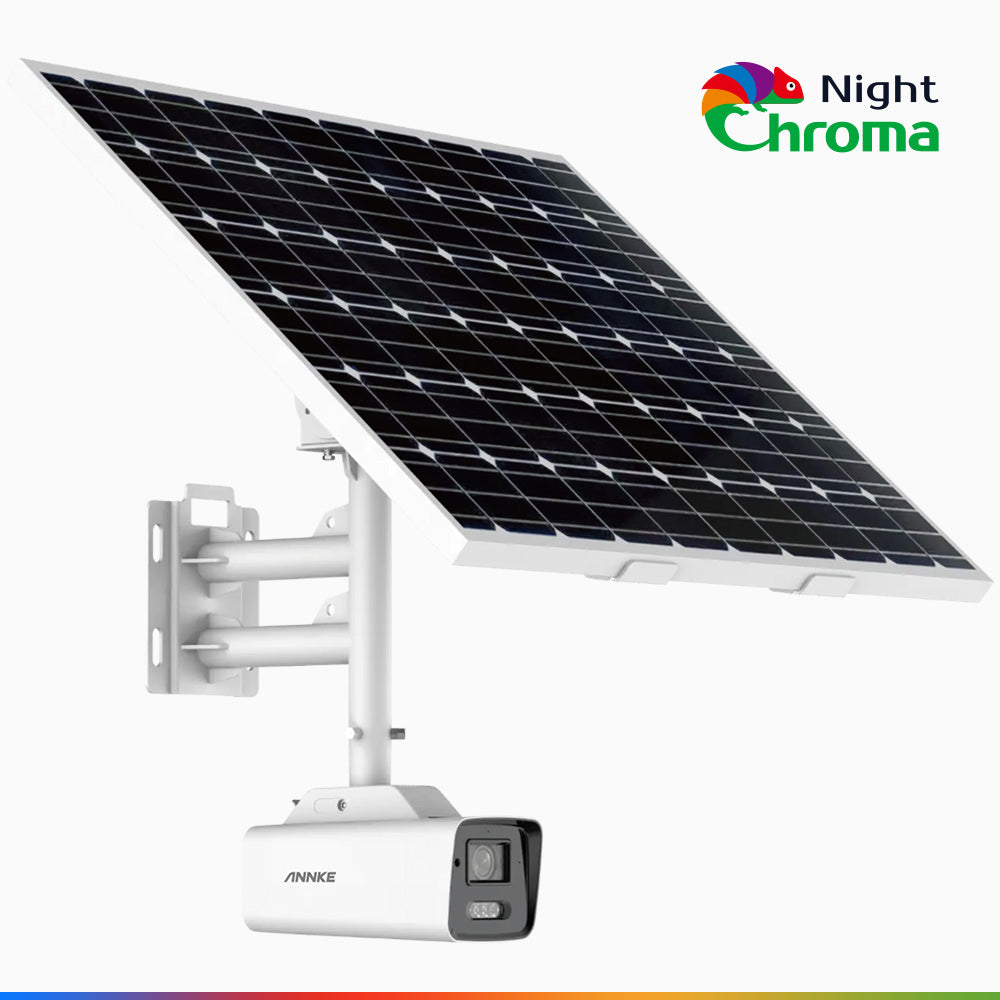

8MP Fixed Bullet Solar Power 4G Network Camera

8MP Fixed Bullet Solar Power 4G Network Camera

$1,999.99 MSRP
Model Number: I91BU
  • High quality imaging with 4K resolution(3840*2160)
  • 24/7 Colorful imaging
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • 80 W photovoltaic panel, 360WH chargeable lithium battery
  • Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
  • LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
  • Metal rugged housing, IP67 Waterproof
  • Built-in 64 GB eMMC storage
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download I91BU Specification

    Available Carriers

    Camera Image Sensor 1/1.2" Progressive Scan CMOS
    Max resolution 3840 × 2160
    Main Stream 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream 50 Hz: 12.5 fps (640 × 480, 640 × 360)
    60 Hz: 15 fps (640 × 480, 640 × 360)
    Video Compression Main stream: H.265
    Sub-stream: H.265/MJPEG
    *Full power mode: main stream supports H.265+
    Video Bitrate 32 Kbps to 16 Mbps
    Lens 2.8 mm@F1.0
    DORI D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
    Angle of View Horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°
    Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
    Supplement Light Type White Light
    Supplement Light Range Up to 30 m
    Basic Event Motion detection(human and vehicle targets classification), video tampering alarm, exception
    Smart Event Line crossing detection,intrusion detection,region entrance detection,region exiting detection, unattended baggage detection, object removal detection, The smart events are only supported under full power mode.Focus on human and vehicle targets classification based on deep learning.
    Image Enhancement BLC, HLC, 3D DNR
    Wide Dynamic Range 120 dB WDR
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    API Open Network Video Interface Version 18.12,  ISAPI, ISUP
    Region of Interest (ROI) 4 fixed regions for main stream
    Privacy Mask 4 programmable polygon privacy masks
    General Function Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter,remote access, image parameters switch
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    Mobile Communication SIM Card Type MicroSIM
    Frequency EU:  LTE-TDD: Band38/40/41
    LTE-FDD: Band1/3/5/7/8/20/28
    WCDMA: Band1/5/8
    GSM: Band3/5/8

    US: LTE-FDD: Band2/4/5/12/13/17/66/71
    WCDMA: Band2/4/5

    LA: LTE-TDD: Band38/40
    LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
    WCDMA: Band1/2/3/4/5/8
    GSM: Band2/3/5/8

    JP: LTE-TDD: Band41
    LTE-FDD: Band1/3/8/11/18/19/21/26/28
    WCDMA: Band1/8
    Standard EU: LTE-TDD/LTE-FDD/WCDMA/GSM
    US: LTE-FDD/WCDMA
    LA: LTE-TDD/LTE-FDD/WCDMA/GSM
    JP: LTE-TDD/LTE-FDD/WCDMA
    General Housing Front cover: metal, body: metal, bracket: metal
    Color White
    RS-485 1 RS-485 (half duplex)
    Storage Built-in 64 GB eMMC storage, built-in microSD/SDHC/SDXC Slot, up to 256 GB, NAS
    Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
    Hardware Reset Yes
    Operating Power 12 VDC ± 20%, Ø5.5 mm coaxial power plug
    1. Standby power consumption: 53 mW
    2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).
    3. The max. power consumption: 3.2 W
    Operating Temperature -20 °C to 60 °C (-4 °F to 140 °F)
    Indoor/Outdoor Use Indoor/Outdoor
    Protection IP67, wind resistance 12 level, up to 40 m/s wind speed resistance
    Dimension (L X W X H) 829.9 × 696.3 × 760 mm (32.7" × 27.4" × 30") (Max. size of the camera after it is completely assembled)
    Weight Approx. 25.4 kg (56.0 lb.)
    Package Dimension 862 × 292 × 765 mm (33.9" × 11.5" × 30.1")
    Weight Approx. 30.1 kg (66.3 lb.)
    Solar Panel Photovoltaic panels 80W
    Dimension 760 × 640 mm(29.9" × 25.2")
    Battery Battery Type Lithium
    Capacity 30 Ah
    Max. Output Voltage 12.6 V
    Battery Voltage 10.8 V
    Operating Temperature Charging: -20 °C to 45 °C (-4 °F to 113 °F)
    Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
    Battery Life More than 500 cycles
    Battery Weight Approx. 3.3 kg (7.3 lb.)
    Extended Dimension 236 × 154 × 80 mm (9.3" × 6.1" × 3.2")
