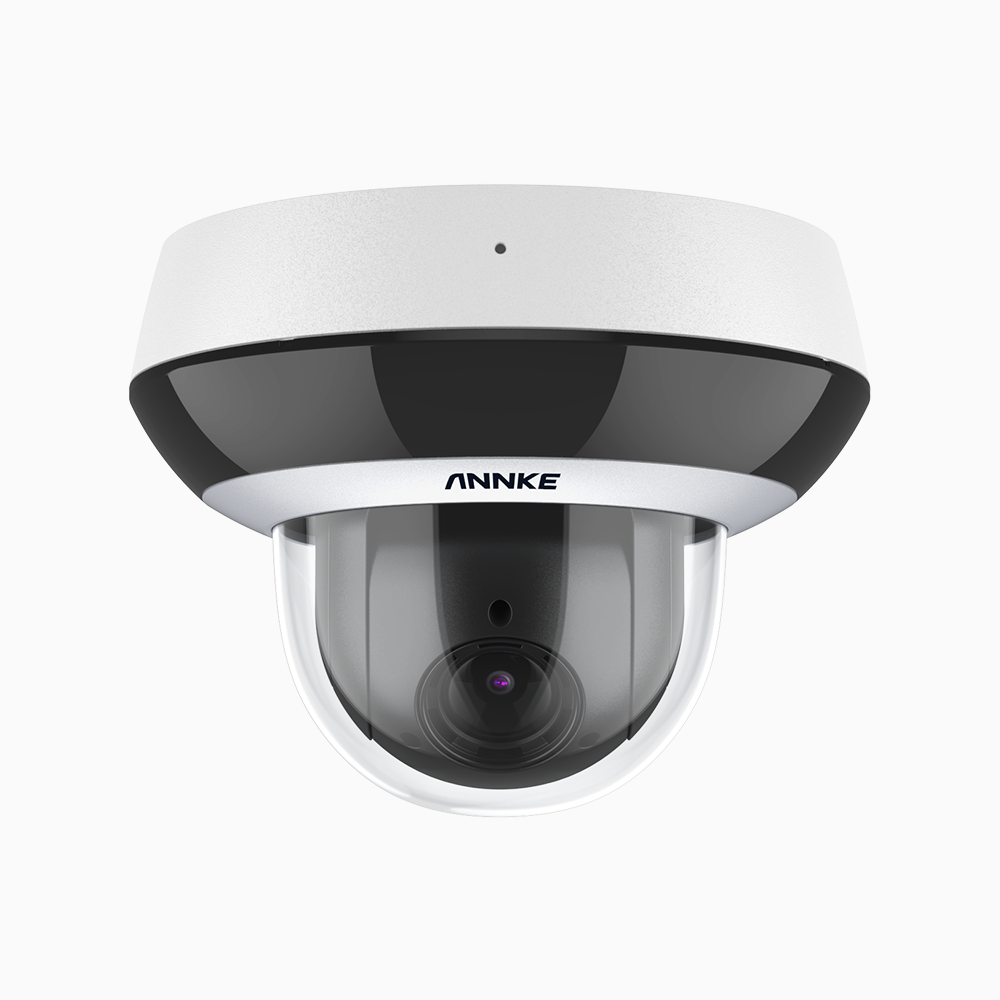

3K 4X Outdoor IR Mini Dome PTZ Network Camera

3K 4X Outdoor IR Mini Dome PTZ Network Camera

$299.99 MSRP
Model Number: I91BK
  • High quality imaging with 3K resolution(3072*1728)
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4x optical zoom allows for closer viewing of subjects in expansive areas
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Up to 20m IR range ensures safety at night
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Smart event monitoring: face detection, line crossing detection, intrusion detection, etc
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download I91BK Specification

    Camera
    Image Sensor1/2.8"  Progressive Scan CMOS Video Bit Rate256 Kbps - 16384 kbps
    Sub-stream50 Hz: 25 fps (704*480,640*480, 352*240)
    60 Hz: 30 fps (704*480,640*480, 352*240)    		 Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264/MJPEG
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Main Stream50 Hz: 15 fps (3072*1728), 25 fps ( 1920*1080,  1280*960, 1280*720)
    60 Hz:  15 fps (3072*1728), 30 fps ( 1920*1080,  1280*960, 1280*720)    		 Third stream50 Hz: 25 fps (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    60 Hz: 30 fps  (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    Audio Bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16Kbps(AAC) Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
    Lens2.8-12 mm, 4x optical zoom, 16x digital Zoom Shutter Speed1/1 s to 1/30,000 s
    Slow ShutterYes PT Movement RangePAN: 0° to 355°,Tilt: From 0° to 90°
    Min. IlluminationColor: 0.005 lux @ (ƒ/1.5, AGC on), b/w: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR Angle of ViewHorizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°
    PT SpeedConfigurable, from 0.1°/s to 100°/s, preset speed: 100°/s Number of Infrared LEDs4 pcs
    Night Vision DistanceUp to 65 ft/20 m Wide Dynamic Range120 dB True WDR
    Image Enhancement3D DNR, HLC, EIS, regional exposure, regional focus, digital defog ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE,
    APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISUP Region of Interest (ROI)8 fixed regions for each stream
    Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable Basic EventMotion detection, video tampering alarm, exception
    Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection AudioBuild in mic, and support 1-ch audio input and 1-ch audio output
    Ethernet1 RJ45 10M/100M self-adaptive Ethernet port Power Output12 VDC, max. 60 mA
    Image Sensor1/2.8"  Progressive Scan CMOS
    Sub-stream50 Hz: 25 fps (704*480,640*480, 352*240)
    60 Hz: 30 fps (704*480,640*480, 352*240)
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 15 fps (3072*1728), 25 fps ( 1920*1080,  1280*960, 1280*720)
    60 Hz:  15 fps (3072*1728), 30 fps ( 1920*1080,  1280*960, 1280*720)
    Audio Bit rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16Kbps(AAC)
    Lens2.8-12 mm, 4x optical zoom, 16x digital Zoom
    Slow ShutterYes
    Min. IlluminationColor: 0.005 lux @ (ƒ/1.5, AGC on), b/w: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR
    PT SpeedConfigurable, from 0.1°/s to 100°/s, preset speed: 100°/s
    Night Vision DistanceUp to 65 ft/20 m
    Image Enhancement3D DNR, HLC, EIS, regional exposure, regional focus, digital defog
    APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISUP
    Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
    Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
    Ethernet1 RJ45 10M/100M self-adaptive Ethernet port
    Video Bit Rate 256 Kbps - 16384 kbps
    Video Compression Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264/MJPEG
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
    Third stream 50 Hz: 25 fps (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    60 Hz: 30 fps  (1920*1080,  1280*960, 1280*720, 704*480, 640*480, 640*360)
    Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
    Shutter Speed 1/1 s to 1/30,000 s
    PT Movement Range PAN: 0° to 355°,Tilt: From 0° to 90°
    Angle of View Horizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°
    Number of Infrared LEDs 4 pcs
    Wide Dynamic Range 120 dB True WDR
    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE,
    Region of Interest (ROI) 8 fixed regions for each stream
    Basic Event Motion detection, video tampering alarm, exception
    Audio Build in mic, and support 1-ch audio input and 1-ch audio output
    Power Output 12 VDC, max. 60 mA
    General
    MaterialAluminum alloy, PC, PC + ABS ColorWhite & Black
    Operating Power12 VDC, Max. 9.2 W; PoE (802.3af) StorageSupport MicroSD Card (up to 256 GB) and NAS(NFS, SMB/CIFS
    Operating Temperature-4° to 140° F (-20° to 60° C) Indoor/OutdoorIndoor/Outdoor
    Protection LevelIP66, IK10, TVS 4000V lightning protection, surge protection, and voltage transient protection DimensionØ 5.15" x 4.00" (Ø 130.7 mm × 101.7 mm)
    WeightApproximately 1.17 lbs (0.53 kg)
    MaterialAluminum alloy, PC, PC + ABS
    Operating Power12 VDC, Max. 9.2 W; PoE (802.3af)
    Operating Temperature-4° to 140° F (-20° to 60° C)
    Protection LevelIP66, IK10, TVS 4000V lightning protection, surge protection, and voltage transient protection
    WeightApproximately 1.17 lbs (0.53 kg)
    Color White & Black
    Storage Support MicroSD Card (up to 256 GB) and NAS(NFS, SMB/CIFS
    Indoor/Outdoor Indoor/Outdoor
    Dimension Ø 5.15" x 4.00" (Ø 130.7 mm × 101.7 mm)
