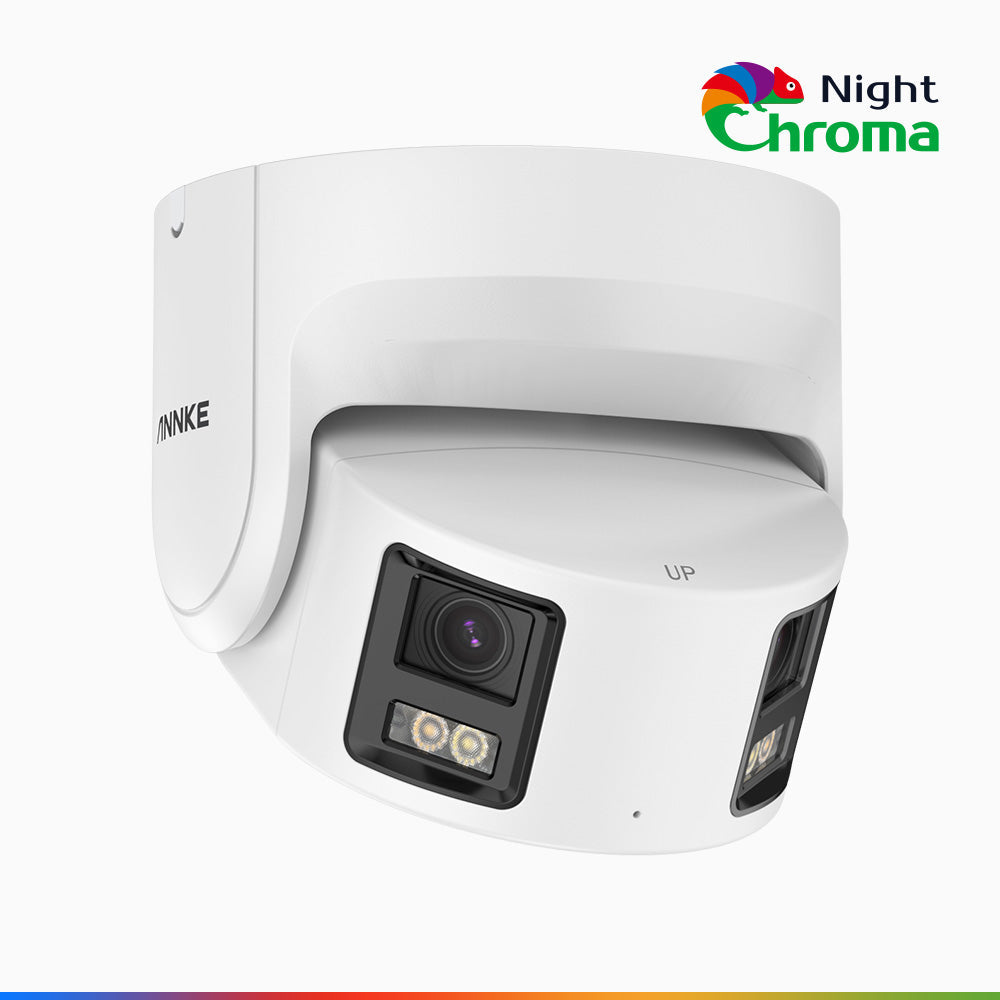

4K Outdoor Panoramic Fixed Turret Network Camera

4K Outdoor Panoramic Fixed Turret Network Camera

$379.99 MSRP
Model Number: I91BH

• 24/7 vibrant full-color imaging with NightChroma™ technology
• Dual lenses and dual sensors provide true 180° panoramic coverage
• Efficient H.265+ compression reduces storage and bandwidth usage
• 130 dB WDR ensures clear imaging even against strong backlight
• Deep learning enables accurate human and vehicle detection
• Active strobe light and audio alarm deter intruders effectively
• Rugged metal housing with IP67 waterproof rating for reliable outdoor performance

Contact Sales

ANNKE brand or unbranded options

Flexible MOQ & bulk order discounts

Ready stock for fast delivery

Reliable after‑sales & technical support

Specification

Download I91BH Specification

What's in the Box
  • ➀ 1X Security Camera
  • ➁ 1X Mounting Screw Bag
  • ➂ 1X User Manual
    • Camera
    Main StreamWhen WDR is On:50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440)
    When WDR is Off:50 Hz: 20 fps (5120 × 1440)  60 Hz: 20 fps (5120 × 1440)    		 Sub StreamWhen WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272)60 Hz: 15 fps (1920 × 536, 960 × 272)
    When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272)60 Hz: 20 fps (1920 × 536, 960 × 272)
    Image sensor2×1/1.8" Progressive Scan CMOS Video compressionH.265+/H.265/H.264+/H.264
    Video Bit Raten32 Kbps to 16 Mbps Built-in MicrophoneYes, support environment noise filtering
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in SpeakerYes, max. sound pressure: 10 cm: 95 dB
    LensDual lens: 4 mm Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
    Angle of ViewHorizontal FOV: 180° ± 10°, Vertical FOV: 44° DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
    Supplement LightYellow warm light Supplement Light RangeUp to 40 m
    Image Parameters SwitchYes Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range130dB WDR Basic EventMotion detection (support human and vehicle detection), video tampering
    Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
    IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Onvif, ISAPI,    		 Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,(support human and vehicle detection)
    Flashing Light alarmSupport(Parameters adjustable,can be triggered from APP) Audio AlarmSupport(Parameters adjustable,support custom audio, can be triggered from APP)
    Main StreamWhen WDR is On:50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440)
    When WDR is Off:50 Hz: 20 fps (5120 × 1440)  60 Hz: 20 fps (5120 × 1440)
    Image sensor2×1/1.8" Progressive Scan CMOS
    Video Bit Raten32 Kbps to 16 Mbps
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    LensDual lens: 4 mm
    Angle of ViewHorizontal FOV: 180° ± 10°, Vertical FOV: 44°
    Supplement LightYellow warm light
    Image Parameters SwitchYes
    Wide Dynamic Range130dB WDR
    Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
    IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Onvif, ISAPI,
    Flashing Light alarmSupport(Parameters adjustable,can be triggered from APP)
    Sub Stream When WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272)60 Hz: 15 fps (1920 × 536, 960 × 272)
    When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272)60 Hz: 20 fps (1920 × 536, 960 × 272)
    Video compression H.265+/H.265/H.264+/H.264
    Built-in Microphone Yes, support environment noise filtering
    Built-in Speaker Yes, max. sound pressure: 10 cm: 95 dB
    Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
    DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
    Supplement Light Range Up to 40 m
    Image Enhancement BLC, HLC, 3D DNR
    Basic Event Motion detection (support human and vehicle detection), video tampering
    Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,(support human and vehicle detection)
    Audio Alarm Support(Parameters adjustable,support custom audio, can be triggered from APP)
    General
    HousingMetal, White color Operating PowerPoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR,
    Audio input/output1 input (line in),1 output (line out) Alarm nput/output1 input, 1 output (max. 24 VDC, 1 A)
    Hardware ResetYes Operating Temperature-22 °F – 140 °F /-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H)118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12") WeightApprox. 1420 g (3.1 lb.)
    HousingMetal, White color
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Audio input/output1 input (line in),1 output (line out)
    Hardware ResetYes
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")
    Operating Power PoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug
    Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR,
    Alarm nput/output 1 input, 1 output (max. 24 VDC, 1 A)
    Operating Temperature -22 °F – 140 °F /-30 °C – 60 °C
    Weatherproof Rating IP67
    Weight Approx. 1420 g (3.1 lb.)
