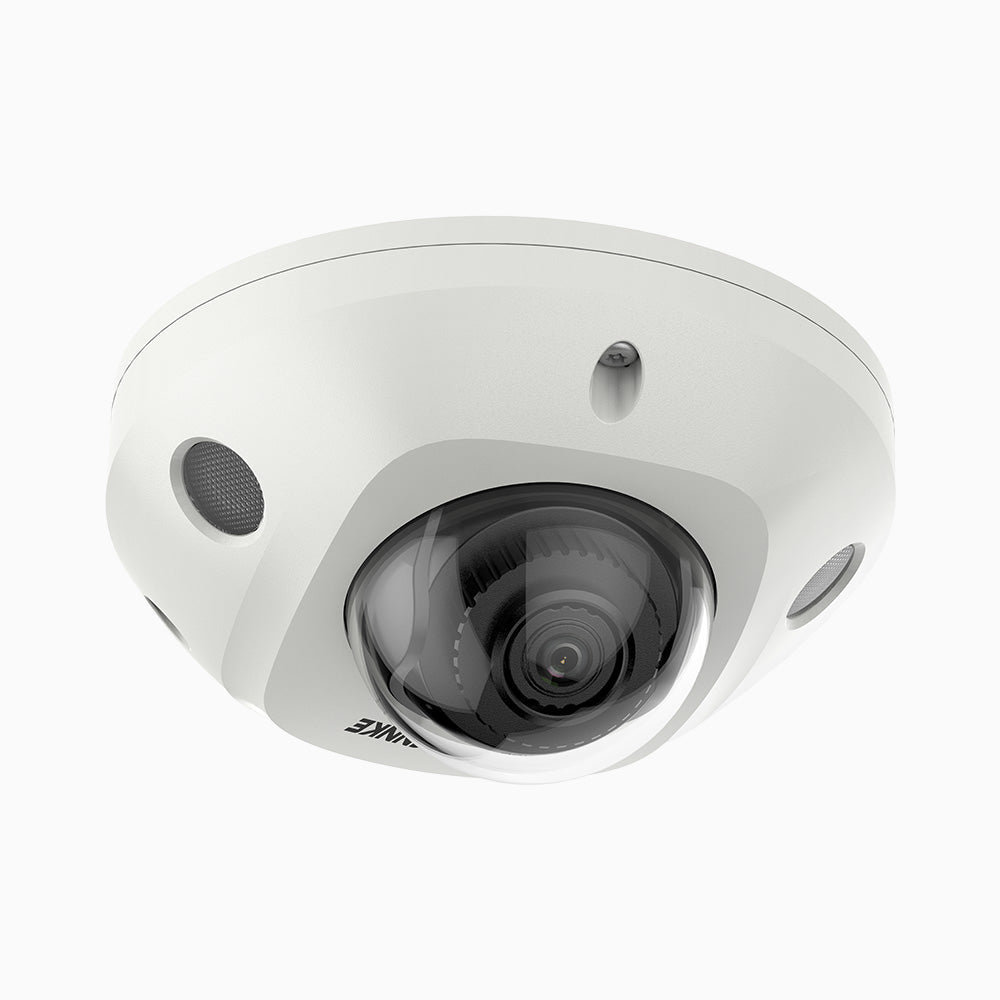

4MP Outdoor Fixed Mini Dome Network Camera

4MP Outdoor Fixed Mini Dome Network Camera

$159.99 MSRP
Model Number: I81HQ
  • High quality imaging with 4MP resolution(2688 × 1520 @30 fps)
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Realizing Wi-Fi connection and easy installation
  • Plastic rugged housing, IP67 Waterproof and vandal resistant (IK08)
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download I81HQ Specification

    Camera Image Sensor 1/3" Progressive Scan CMOS
    Max resolution 4MP(2688 × 1520)
    Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Third stream is supported under certain settings.
    Video Compression Main stream: H.265/H.264/H.265+/H.264+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    *Third stream is supported under certain settings
    Video Bitrate 32 Kbps to 8 Mbps
    Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    Audio Input Built-in Microphone, record with audio
    Lens 2.8 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of View Horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
    Supplement Light Type IR
    Supplement Light Range IR: up to 30 m
    Basic Event Motion detection (human and vehicle targets classification)
    Smart Event Line crossing detection, intrusion detection, face detection
    Image Enhancement BLC, HLC, 3D DNR
    Wide Dynamic Range 120 dB WDR
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE,WebSocket, WebSockets
    API Open Network Video Interface Version 18.12
    Region of Interest (ROI) 1 fixed region for main stream
    Privacy Mask 4 programmable polygon privacy masks
    General Function Anti-flicker, heartbeat, password reset via email, pixel counter, remote access
    General Housing Base: aluminum, cover: plastic
    Color White
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    Storage Built-in microSD slot up to 512 GB & NAS
    Hardware Reset Yes
    Audio interface 1 input (line in) & 1 output (line out),  two-core terminal block
    Alarm interface 1 input, 1 output (max. 12 VDC, 20 mA)
    Operating Power DC 12 V± 25%, max. 5.5 W; PoE (802.3af), max. 6.5 W
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor Use Indoor/Outdoor
    Interface Protection IP67, IK8
    Dimension (L X W X H) Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")
    Weight Approx. 380 g (0.8 lb.)
