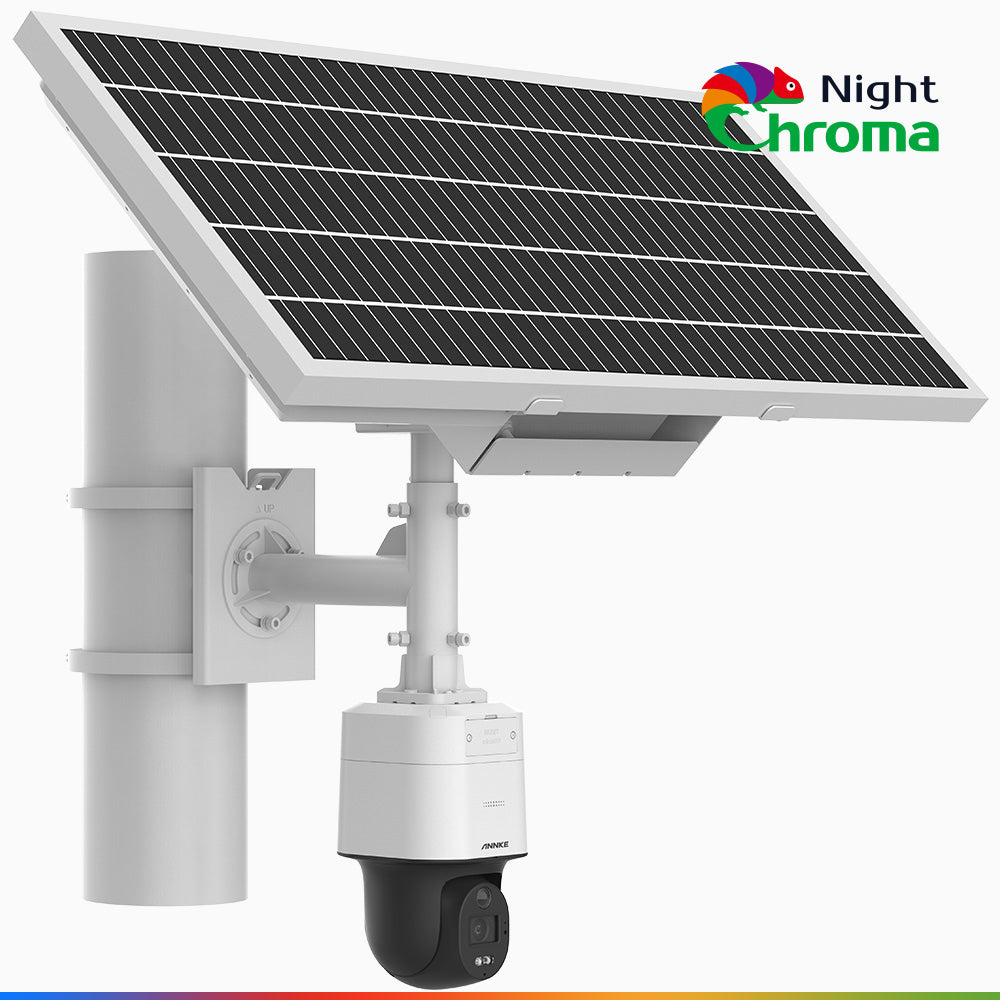

4MP Solar-powered Security PT Camera

4MP Solar-powered Security PT Camera

$799.99 MSRP
Model Number: I81HP
  • High quality imaging with 4MP resolution(2688*1520)
  • Standalone with solar panel and built-in battery
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Provide real-time security via built-in two-way audio
  • Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
  • Metal & Plastic rugged housing, IP65 Waterproof
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download I81HP Specification

    Available Carriers

    What's in the Box
  • 1X Camera
  • 1X Connecting bracket
  • 1X Pole mount connector
  • 1X Solar Panel
  • 1X Battery
  • 1X Screws & Accessories
    • Camera
    Image Sensor1/3" Progressive Scan CMOS Max resolution2688 × 1520
    Main Stream50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)    		 Substream50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps to 8 Mbps Angle of ViewHorizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
    DORID: 82 m, O: 32 m, R: 16 m, I: 8 m Lens4 mm@F1.0
    Video CompressionMain stream: H.265/ H.264
    Sub-stream: H.265/H.264/MJPEG
    H.264+ and H.265+: main stream supports under performance mode    		 Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
    Day & Night24/7 color imaging Angle AdjustmentPan: 0° to 340°, tilt: -5° to 105°
    Supplement Light TypeWhite Light Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
    Basic EventMotion detection, video tampering alarm, exception Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range120 dB WDR Built-in MicrophoneYes, record with audio
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 Built-in SpeakerYes, two way audio,  audible warning
    ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps to 8 Mbps
    DORID: 82 m, O: 32 m, R: 16 m, I: 8 m
    Video CompressionMain stream: H.265/ H.264
    Sub-stream: H.265/H.264/MJPEG
    H.264+ and H.265+: main stream supports under performance mode
    Day & Night24/7 color imaging
    Supplement Light TypeWhite Light
    Basic EventMotion detection, video tampering alarm, exception
    Wide Dynamic Range120 dB WDR
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
    ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
    Max resolution 2688 × 1520
    Substream 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
    Angle of View Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
    Lens 4 mm@F1.0
    Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
    Angle Adjustment Pan: 0° to 340°, tilt: -5° to 105°
    Supplement Light Range Performance mode: up to 30 m, proactive mode: up to 10 m
    Image Enhancement BLC, HLC, 3D DNR
    Built-in Microphone Yes, record with audio
    Built-in Speaker Yes, two way audio,  audible warning
    API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI
    Mobile Communication
    SIM Card TypeMicroSIM StandardLTE-TDD, LTE-FDD, WCDMA, GSM
    FrequencyEU:  LTE-TDD: Band38/40/41
    LTE-FDD: Band1/3/5/7/8/20/28
    WCDMA: Band1/5/8
    GSM: Band3/5/8
    US: LTE-FDD: Band2/4/5/12/13/17/66/71
    WCDMA: Band2/4/5
    LA: LTE-TDD: Band38/40
    LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
    WCDMA: Band1/2/3/4/5/8
    GSM: Band2/3/5/8    		 Uplink and Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
    SIM Card TypeMicroSIM
    FrequencyEU:  LTE-TDD: Band38/40/41
    LTE-FDD: Band1/3/5/7/8/20/28
    WCDMA: Band1/5/8
    GSM: Band3/5/8
    US: LTE-FDD: Band2/4/5/12/13/17/66/71
    WCDMA: Band2/4/5
    LA: LTE-TDD: Band38/40
    LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
    WCDMA: Band1/2/3/4/5/8
    GSM: Band2/3/5/8
    Standard LTE-TDD, LTE-FDD, WCDMA, GSM
    Uplink and Downlink Data Rate Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
    Solar Panel
    Photovoltaic panels40W Angle AdjustmentPan: 0° to 358°, tilt: -40° to 0°
    Photovoltaic panels40W
    Angle Adjustment Pan: 0° to 358°, tilt: -40° to 0°
    Battery
    Battery TypeTernary Lithium Capacity8.4 Ah × 2 packs
    Max. Output Voltage12.6 V Battery Voltage9 V to 12.6 V
    Battery LifeMore than 500 cycles Battery WeightApprox. 1400 g (3.1 lb.)
    Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F)
    Discharging: -20 °C to 55 °C (-4 °F to 131 °F)    		 Cycle LifetimePerformance mode: 3.6 days,
    Proactive mode: 6 days,
    Standby mode: 30 days
    Battery TypeTernary Lithium
    Max. Output Voltage12.6 V
    Battery LifeMore than 500 cycles
    Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F)
    Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
    Capacity 8.4 Ah × 2 packs
    Battery Voltage 9 V to 12.6 V
    Battery Weight Approx. 1400 g (3.1 lb.)
    Cycle Lifetime Performance mode: 3.6 days,
    Proactive mode: 6 days,
    Standby mode: 30 days
    General
    HousingCamera: Plastic, solar panel: Metal ColorWhite
    Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port RS-4851 RS-485 (half duplex)
    StorageBuilt-in 64 GB eMMC storage, 50 GB is available for recording. Built-in microSD/SDHC/SDXC Slot, up to 256 GB. Operating PowerTypical power scenarios: 1.85 W (4G working)
    Standby scenarios: 40 mW
    Max. power consumption: 6 W
    Power Supply:12 VDC ± 25%
    Power supply interface: Ø5.5 mm coaxial power plug
    Extened solar panel: four-core aviation connector
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port Hardware ResetYes
    Operating Temperature-20 °C to 50 °C (-4 °F to 122 °F) Indoor/Outdoor UseIndoor/Outdoor
    ProtectionIP65 Dimension (L X W X H)686.6mm × 442.6mm × 760 mm (27.03" × 17.42" × 29.9")
    WeightApprox. 11.70 kg (25.8 lb.) Package Dimension902 mm × 342 mm × 440 mm (35.5" × 13.5" × 17.3")
    WeightApprox. 15.01 kg (33.1 lb.)
    HousingCamera: Plastic, solar panel: Metal
    Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    StorageBuilt-in 64 GB eMMC storage, 50 GB is available for recording. Built-in microSD/SDHC/SDXC Slot, up to 256 GB.
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Operating Temperature-20 °C to 50 °C (-4 °F to 122 °F)
    ProtectionIP65
    WeightApprox. 11.70 kg (25.8 lb.)
    WeightApprox. 15.01 kg (33.1 lb.)
    Color White
    RS-485 1 RS-485 (half duplex)
    Operating Power Typical power scenarios: 1.85 W (4G working)
    Standby scenarios: 40 mW
    Max. power consumption: 6 W
    Power Supply:12 VDC ± 25%
    Power supply interface: Ø5.5 mm coaxial power plug
    Extened solar panel: four-core aviation connector
    Hardware Reset Yes
    Indoor/Outdoor Use Indoor/Outdoor
    Dimension (L X W X H) 686.6mm × 442.6mm × 760 mm (27.03" × 17.42" × 29.9")
    Package Dimension 902 mm × 342 mm × 440 mm (35.5" × 13.5" × 17.3")
