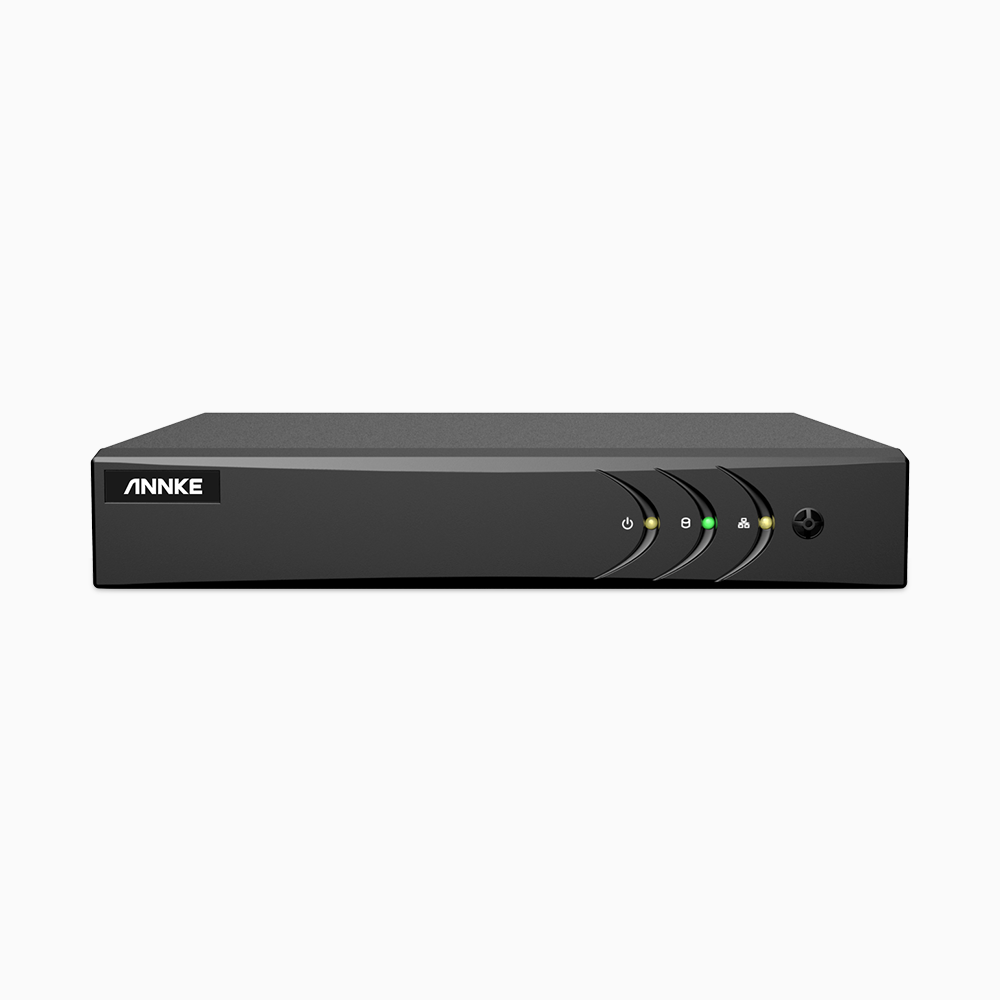

8CH 3K Lite 1U H.265 DVR

8CH 3K Lite 1U H.265 DVR

$109.99 MSRP
Model Number: DW81KT
  • Up to 3K high definition live viewing
  • Up to 3K Lite recording & playback
  • Advanced H.265 Pro+ Video Compression
  • Support TVI/AHD/CVI/CVBS/IPC input
  • Supports iPhone, iPad, Android mobile remote monitoring
  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Quick search by object or event type
  • Audio via coaxial cable
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download DW81KT Specification

    NVR
    Video CompressionH.264+/H.264/H.265/H.265 Pro+ Video Input8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
    Video OutputHDMI and VGA Up to 1080P Audio Input1-ch RCA,  8-ch via coaxial cable
    Audio Output1-ch RCA Analog HD Playback Resolution3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
    IPC Playback ResolutionUp to 6MP Max Playback Channel8-ch
    Supported Camera TypesSupport HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
    Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
    Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
    Support CVBS Input;
    Support IP Video Input 6MP/5MP/4MP/3MP/1080P/720P    		 Motion Detection 2.0All analog channels support human and vehicle detection to reduce false alarm
    Network ProtocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS Total Bandwidth96Mbps
    Remote Connection64 HDD1 SATA interface
    HDD CapacityUp to 10TB capacity Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
    USBUSB2.0x2 Operating PowerDC12V,≤ 12W (without HDD)
    Working Temperature-14 °F – 131 °F /-10 °C – 55 °C Dimensions(W x H x D)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
    Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
    Video CompressionH.264+/H.264/H.265/H.265 Pro+
    Video Input8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
    Video OutputHDMI and VGA Up to 1080P
    Audio Input1-ch RCA,  8-ch via coaxial cable
    Audio Output1-ch RCA
    Analog HD Playback Resolution3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps
    IPC Playback ResolutionUp to 6MP
    Max Playback Channel8-ch
    Supported Camera TypesSupport HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
    Support AHD Input: 5MP(20FPS)4MP, 1080p, 720P;
    Support CVI Input: 5MP(20FPS),4MP, 1080p, 720P;
    Support CVBS Input;
    Support IP Video Input 6MP/5MP/4MP/3MP/1080P/720P
    Motion Detection 2.0All analog channels support human and vehicle detection to reduce false alarm
    Network ProtocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
    Total Bandwidth96Mbps
    Remote Connection64
    HDD1 SATA interface
    HDD CapacityUp to 10TB capacity
    Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
    USBUSB2.0x2
    Operating PowerDC12V,≤ 12W (without HDD)
    Working Temperature-14 °F – 131 °F /-10 °C – 55 °C
    Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD)
    Dimensions(W x H x D)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
