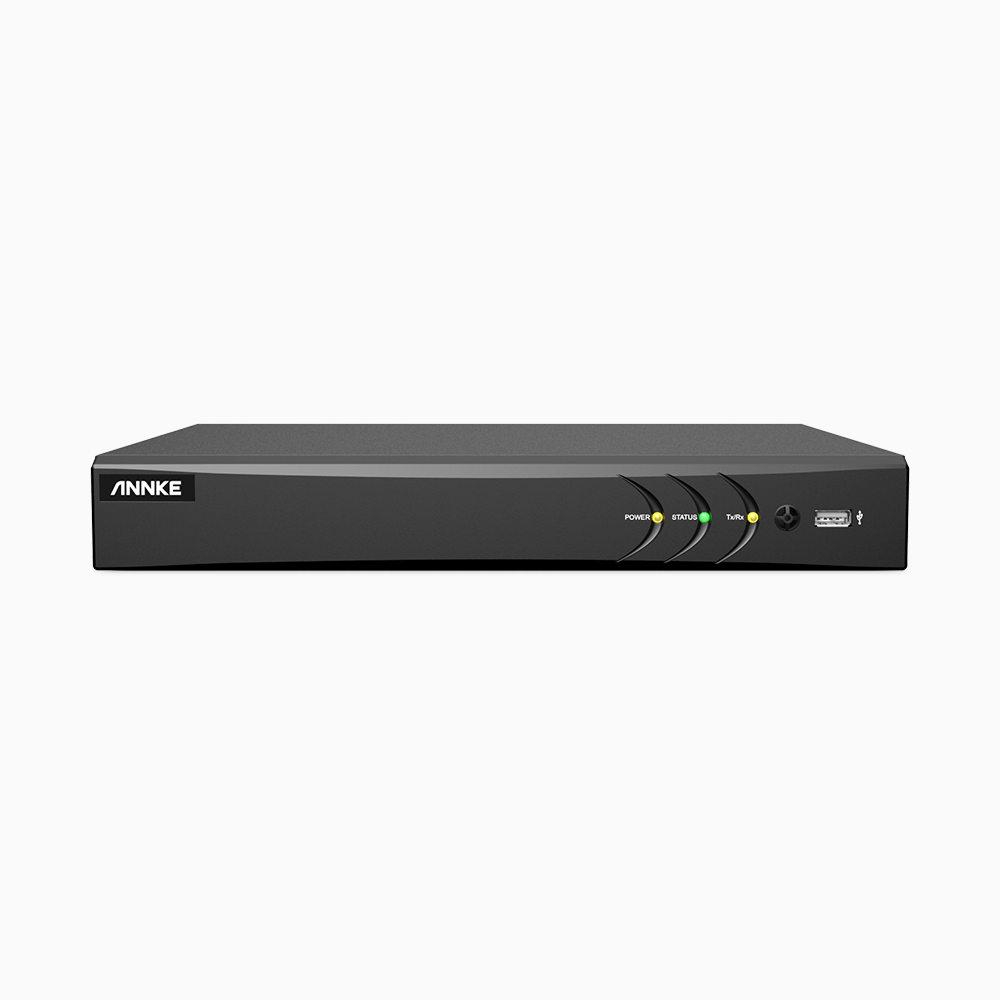

Download ANNKE 4K DVR Specification
Video & Audio
| Video CompressionH.264+/H.264/H.265/H.265+ |
Video Input8CH Analog HD/Analog+4CH IP |
| Video OutputVGA up to 1080P, HDMI up to 4K |
Audio Input/Output1/1 RCA |
| Analog HD Recording Resolution4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
Analog HD Playback Resolution4K@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| IP Camera input4CH |
IPC Recording ResolutionUp to 6M |
| IPC Playback ResolutionUp to 6M |
Max Playback Channel8-ch 1080P |
| Video Compression H.264+/H.264/H.265/H.265+ |
| Video Output VGA up to 1080P, HDMI up to 4K |
| Analog HD Recording Resolution 4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
| IP Camera input 4CH |
| IPC Playback Resolution Up to 6M |
| Video Input 8CH Analog HD/Analog+4CH IP |
| Audio Input/Output 1/1 RCA |
Analog HD Playback Resolution 4K@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| IPC Recording Resolution Up to 6M |
| Max Playback Channel 8-ch 1080P |
|
Hard Drive
| HDD1 SATA interface |
HDD CapacityUp to 8TB capacity |
| HDD 1 SATA interface |
| HDD Capacity Up to 8TB capacity |
General
| Network interfaceRJ45x1(10/100M/1000M) |
Working Condition-14 °F – 131 °F /-10 °C – 55 °C |
| BNC Output－ |
Alarm Input/Output－ |
| RS4850 |
USBUSB2.0x1+1xUSB 3.0 |
| Dimensions(W x H x D)315 × 242 × 45 mm |
Weight (without hard disk)≤ 2 kg (4.4 lb) (without HDD) |
| Network interface RJ45x1(10/100M/1000M) |
| BNC Output － |
| RS485 0 |
| Dimensions(W x H x D) 315 × 242 × 45 mm |
| Working Condition -14 °F – 131 °F /-10 °C – 55 °C |
| Alarm Input/Output － |
| USB USB2.0x1+1xUSB 3.0 |
| Weight (without hard disk) ≤ 2 kg (4.4 lb) (without HDD) |
