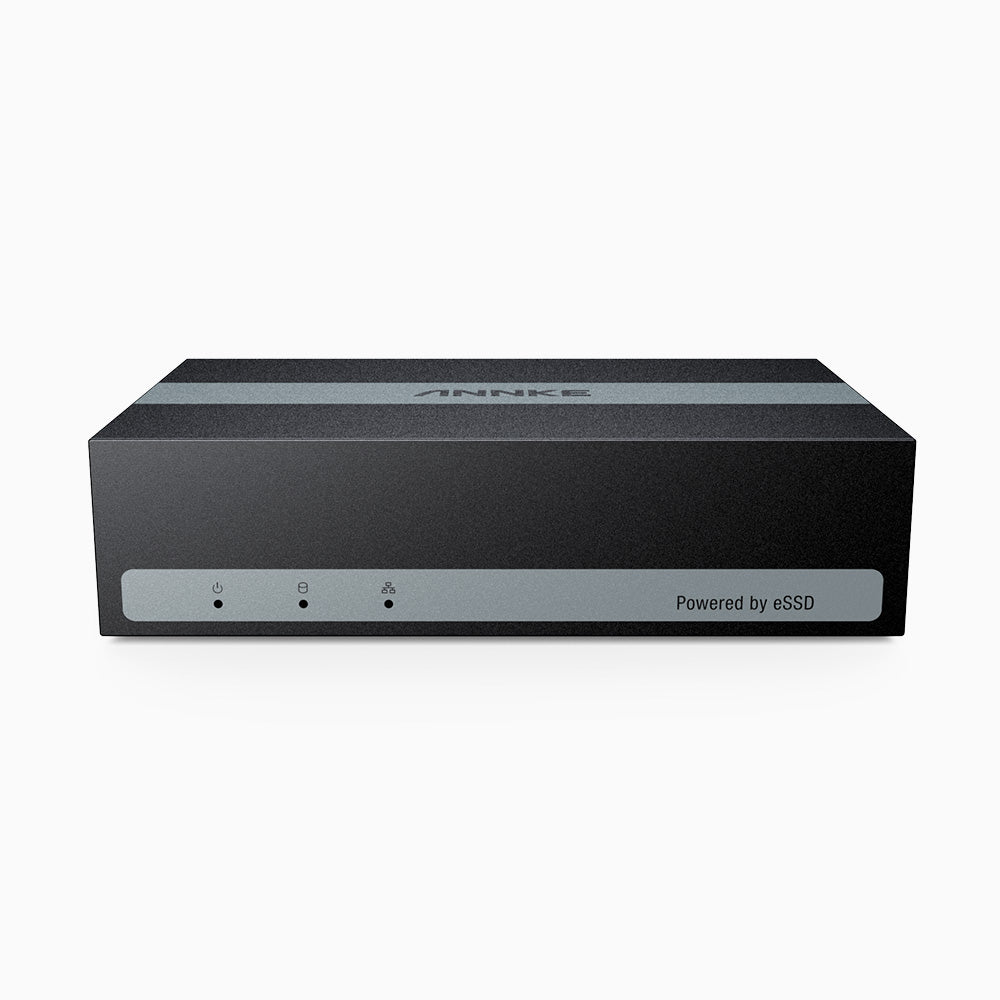

8CH 3K Lite 1U H.265 1024 GB eSSD DVR

8CH 3K Lite 1U H.265 1024 GB eSSD DVR

$159.99 MSRP
Model Number: DT81BH
  • Powered by eSSD technology, built-in 1024 GB eSSD
  • Motion Detection 2.0: human and vehicle targets classification
  • Deep learning-based perimeter protection
  • Scene-adaptive bitrate control video compression
  • Up to 3K/5MP Lite@12 fps encoding capability
  • Low power consumption, sustainable eDVR contribute to the earth
  • Audio via coaxial cable
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download DT81BH Specification

    What's in the Box
  • 1X DVR
  • 1X USB Mouse
  • 1X Power Adapter
  • 1X HDMI Cable
  • 1X Network Cable
  • 1X User's Manual For DVR
    • Video & Audio
    Video CompressionH.265 Pro/H.265/Scene-Adaptive Bitrate Control coding Video Input8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
    Video OutputHDMI/VGA up to 1080p/60 Hz Audio Input/Output8-ch via coaxial cable/1-ch via HDMI
    Supported Camera Types1)TVI Input: 3K@20fps,5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@60/50/30/25 fps;
    2)AHD Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    3)CVI Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    4)CVBS: Support     		Analog HD Playback ResolutionMain stream:
    When 1080p Lite mode not enabled:
    For 5 MP stream access:
    5 MP Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 1080p stream access:
    1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
    For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled:
    5 MP/3K Lite@12 fps; 4 MP Lite/@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30fps (N)
    IP Camera Input2-CH Video OutputHDMI/VGA up to 1080p/60 Hz
    Max Playback Channel4CH Motion Detection 2.0(Human/Vehicle Analysis)Up to 8CH,
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights
    ONVIFSupport IPC Playback ResolutionUp to 6MP
    Video CompressionH.265 Pro/H.265/Scene-Adaptive Bitrate Control coding
    Video OutputHDMI/VGA up to 1080p/60 Hz
    Supported Camera Types1)TVI Input: 3K@20fps,5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@60/50/30/25 fps;
    2)AHD Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    3)CVI Input: 5 MP@20 fps, 4MP@30/25fps,,1080p@30/25 fps, 720p@30/25 fps;
    4)CVBS: Support
    IP Camera Input2-CH
    Max Playback Channel4CH
    ONVIFSupport
    Video Input 8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
    Audio Input/Output 8-ch via coaxial cable/1-ch via HDMI
    Analog HD Playback Resolution Main stream:
    When 1080p Lite mode not enabled:
    For 5 MP stream access:
    5 MP Lite@12 fps; 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 1080p stream access:
    1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N)
    For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled:
    5 MP/3K Lite@12 fps; 4 MP Lite/@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30fps (N)
    Video Output HDMI/VGA up to 1080p/60 Hz
    Motion Detection 2.0(Human/Vehicle Analysis) Up to 8CH,
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights
    IPC Playback Resolution Up to 6MP
    Network
    Total Bandwidth96 Mbps，Incoming bandwidth: 8 Mbps Remote Connection64
    Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™,  HTTPS Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    Total Bandwidth96 Mbps，Incoming bandwidth: 8 Mbps
    Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™,  HTTPS
    Remote Connection 64
    Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    Hard Drive
    SSDBuild in SSD SSD CapacityBuilt-in 1024 GB eSSD (960 GB available) Note:
    The device can store about 2 weeks videos for 8-ch analog cameras (default parameters),this estimation is for  reference only.
    SSDBuild in SSD
    SSD Capacity Built-in 1024 GB eSSD (960 GB available) Note:
    The device can store about 2 weeks videos for 8-ch analog cameras (default parameters),this estimation is for  reference only.
    Auxiliary Interface
    USBUSB 2.0 X2
    USBUSB 2.0 X2
    General
    Working Temperature14 °F – 113 °F/-10 °C – 45 °C Dimensions (W x D x H)172 X 121.6 X 46 mm （6.7x4.79x1.81inch）
    Weight≤0.5Kg （With eSSD,1.1lb.) Operating PowerDC12V，1A , ≤ 8.2 W （With eSSD)
    Working Temperature14 °F – 113 °F/-10 °C – 45 °C
    Weight≤0.5Kg （With eSSD,1.1lb.)
    Dimensions (W x D x H) 172 X 121.6 X 46 mm （6.7x4.79x1.81inch）
    Operating Power DC12V，1A , ≤ 8.2 W （With eSSD)
