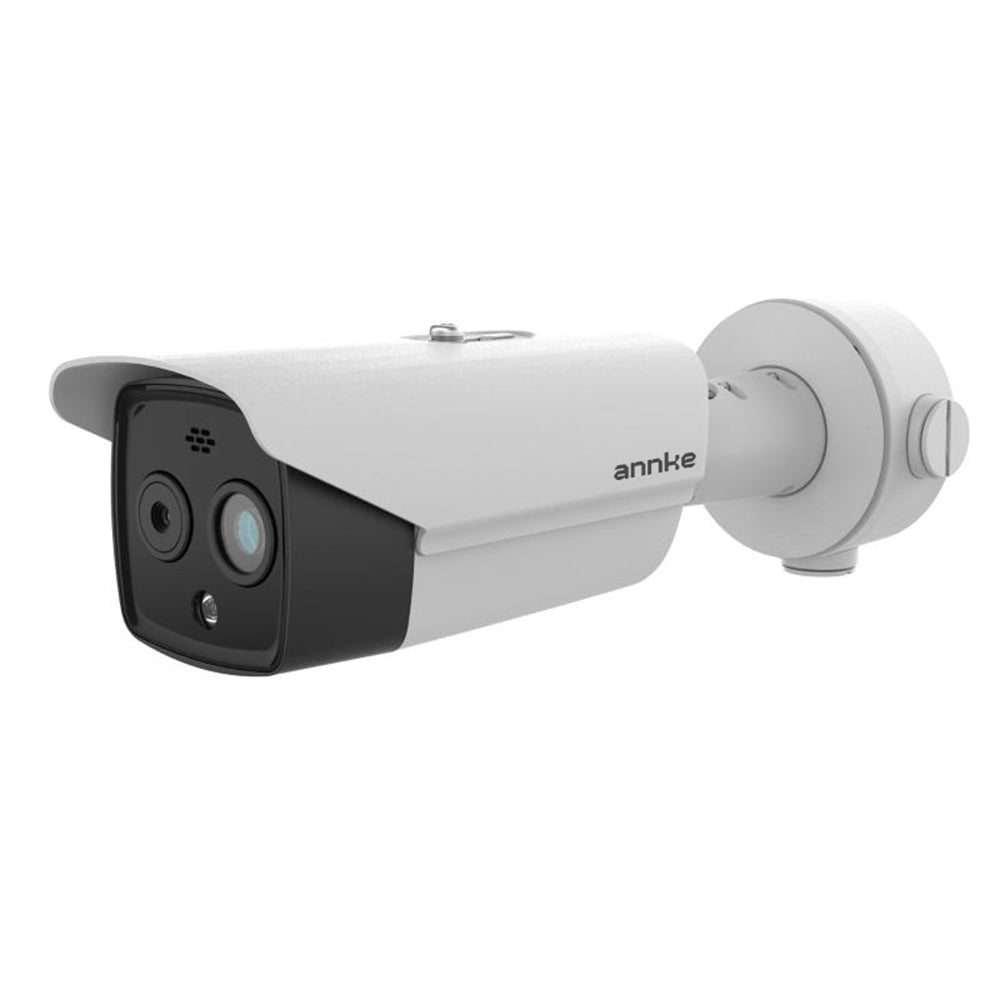

Thermal & Optical Bi-spectrum Network Bullet Camera

Thermal & Optical Bi-spectrum Network Bullet Camera

$499.00 MSRP
Model Number: DS-2TD2628-10/QA
  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • Support smoking detection algorithm
  • Support sun-reflection filter algorithm
  • Smart Features：
    Line Crossing, Intrusion, Region Entrance/Exit with Human and Vehicle Filtering
    Temperature Exception
    Early Warning Fire Prevention
    Advanced Fire Detection
Ask An Expert

One stop shop

Unbeatable pricing

Stable delivery time

Immediate Response

Specification

Download DS-2TD2628-10/QA Specification

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays Resolution256 × 192
Pixel Pitch12 μm Spectral Range8 μm to 14 μm
NETD < 40 mK (25°C, F1.0) Focal Length9.7 mm
IFOV1.24 mrad Field of View18.0° × 13.5° (H × V)
ApertureF1.0 Digital Zoom×2, ×4
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution256 × 192
Pixel Pitch12 μm
Spectral Range8 μm to 14 μm
NETD < 40 mK (25°C, F1.0)
Focal Length9.7 mm
IFOV1.24 mrad
Field of View18.0° × 13.5° (H × V)
ApertureF1.0
Digital Zoom×2, ×4
Optical Module
Image Sensor1/2.7" Progressive Scan CMOS Resolution2688 × 1520
Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR Shutter Speed1 s to 1/100,000 s
Focal Length 8.0 mm Field of View39.4° × 22.1° (H × V)
Aperture (Range)F1.6 WDR120 dB
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520
Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed1 s to 1/100,000 s
Focal Length 8.0 mm
Field of View39.4° × 22.1° (H × V)
Aperture (Range)F1.6
WDR120 dB
Image Effect
Target ColorationYes. Supported in white hot and black hot mode. IR DistanceUp to 30 m
IR Intensity and AngleAutomatically adjusted White Light RangeUp to 30 m
Visual AlarmYes. White light alarm with adjustable flashing frequencies Audio alarmYes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Target ColorationYes. Supported in white hot and black hot mode.
IR DistanceUp to 30 m
IR Intensity and AngleAutomatically adjusted
White Light RangeUp to 30 m
Visual AlarmYes. White light alarm with adjustable flashing frequencies
Audio alarmYes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Video and Audio
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 150°C (-4°F to 302°F) Temperature Accuracy± 8°C (± 14.4°F)
General FunctionFire detection, smoking detection, sun-reflection filter Video CompressionMain Stream: H.265/H.264 | Sub-Stream: H.265/H.264/MJPEG
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-streamThermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 150°C (-4°F to 302°F)
Temperature Accuracy± 8°C (± 14.4°F)
General FunctionFire detection, smoking detection, sun-reflection filter
Video CompressionMain Stream: H.265/H.264 | Sub-Stream: H.265/H.264/MJPEG
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-streamThermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20°C to 150°C (-4°F to 302°F) Temperature Accuracy± 8°C (± 14.4°F)
General FunctionFire detection, smoking detection, sun-reflection filter Video CompressionMain Stream: H.265/H.264 | Sub-Stream: H.265/H.264/MJPEG
Main StreamThermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-streamThermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
General
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
ClientiVMS-4200, Hik-Connect Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Power Consumption24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W Protection LevelIP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection IK10-rated housing
Power Supply24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3) Weight1550 g (3.41 lb)
ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
ClientiVMS-4200, Hik-Connect
Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Power Consumption24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Protection LevelIP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection IK10-rated housing
Power Supply24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3)
Weight1550 g (3.41 lb)
