Download CT1GV Specification
What's in the Box
1X Camera
1X BNC Cable
1X Power Adapter
1X Mounting Screws Bag
1X Window warning sticker
1X User's Manual For Camera

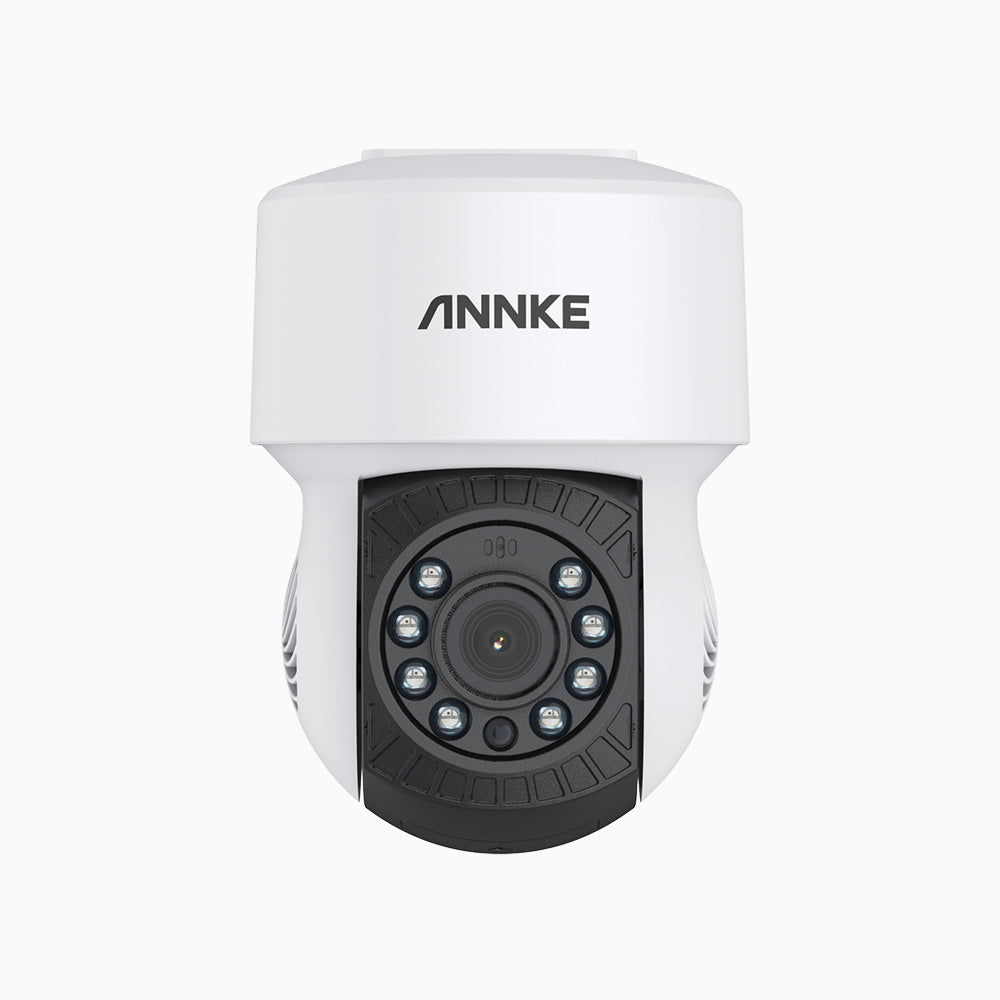

Camera
|
Video ResolutionHD 1080P |
Signal systemPAL/NTSC |
|
Image sensorProgressive Scan CMOS |
Lens3.6mm |
|
Min.Illumination0.02Lux@(F1.2 AGC ON),0Lux with IR on |
Horizontal rotation angle350° |
|
Vertical rotation angle90° |
Number of Infra-Red LEDs8 |
|
Night Vision DistanceUp to 100ft/30m |
DNRDNR |
|
Wide Dynamic RangeDigital WDR |
IR Cut FilterYes |
|
Video OutputHD BNCx1 |
|
|
Video ResolutionHD 1080P |
|
Image sensorProgressive Scan CMOS |
|
Min.Illumination0.02Lux@(F1.2 AGC ON),0Lux with IR on |
|
Vertical rotation angle90° |
|
Night Vision DistanceUp to 100ft/30m |
|
Wide Dynamic RangeDigital WDR |
|
Video OutputHD BNCx1 |
|
Signal system PAL/NTSC |
|
Lens 3.6mm |
|
Horizontal rotation angle 350° |
|
Number of Infra-Red LEDs 8 |
|
DNR DNR |
|
IR Cut Filter Yes |
General
|
HousingPlastic |
Operating PowerDC12V |
|
Operating Temperature-4 °F – 140 °F /-20 °C – 60 °C |
Indoor/OutdoorIndoor/Outdoor |
|
Weatherproof RatingIP65 |
Weight0.57lbs / 260g |
|
Indoor/Outdoor |
|
HousingPlastic |
|
Operating Temperature-4 °F – 140 °F /-20 °C – 60 °C |
|
Weatherproof RatingIP65 |
|
Operating Power DC12V |
|
Indoor/Outdoor Indoor/Outdoor |
|
Weight 0.57lbs / 260g |
