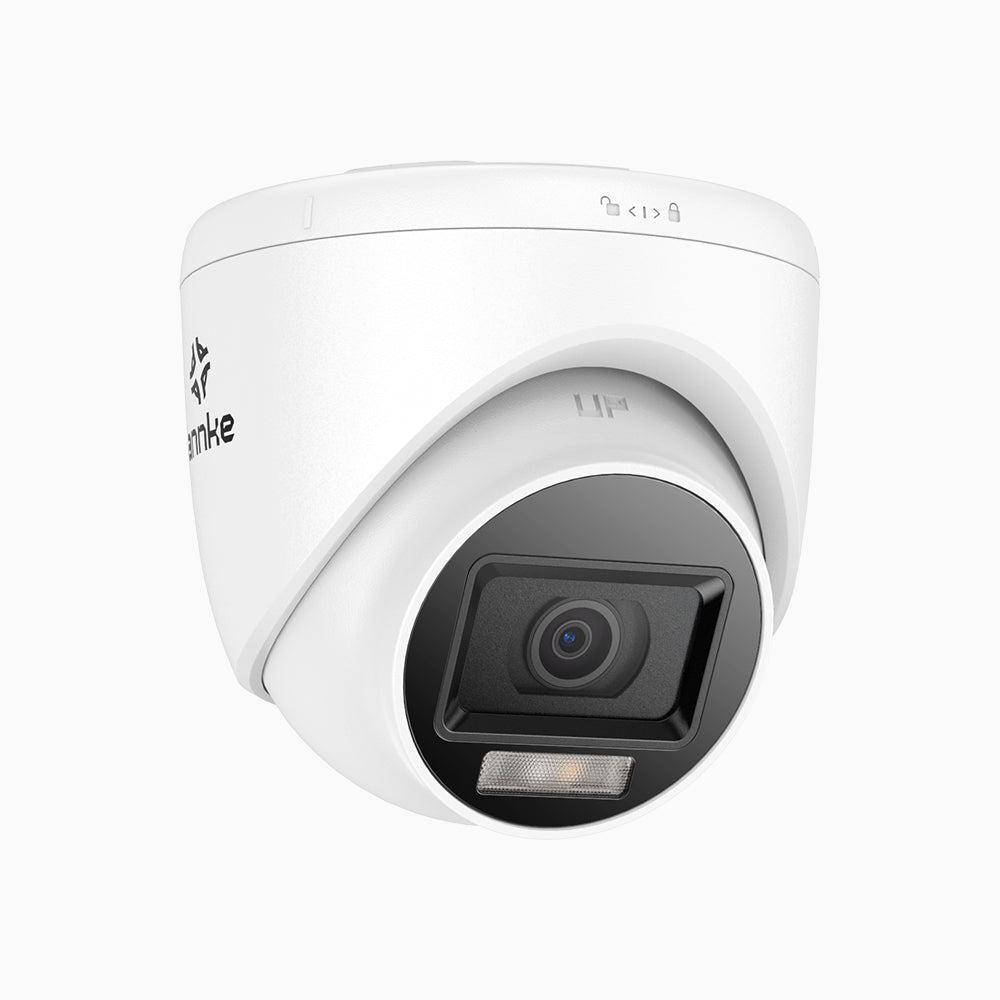

4K Smart Dual Light Fixed Mini Turret Camera

4K Smart Dual Light Fixed Mini Turret Camera

$79.99 MSRP
Model Number: CS1ES
  • High quality imaging with 4K resolusion(3840 × 2160 @20 fps)
  • 2.8 mm fixed focal lens
  • Up to 25 m IR distance for bright night imaging
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS）
  • Plastic rugged housing, IP67 Waterproof
  • Smart Dual light, optimize your security with flexible lighting options
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download ADL800 Specification

    What's in the Box
  • 1X Camera
  • 1X Mounting Screws Bag
  • 1X User's Manual For Camer
    • CS1ES Camera
    Image sensor4K CMOS Image sensor Video Resolution3840 (H) × 2160 (V)
    Signal SystemPAL/NTSC Lens2.8mm
    Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR Angle of View2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
    Frame RateTVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps
    AHD: 8MP@15fps
    CVI: 8MP@12.5fps, 8MP@15fps
    CVBS: PAL/NTSC    		 Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
    Supplement Light typeWhite Light & IR Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m
    Wide Dynamic RangeDigital WDR Audio/
    IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
    Image sensor4K CMOS Image sensor
    Signal SystemPAL/NTSC
    Min.IlluminationColor:0.01 Lux @ (F1.6,AGC ON),0 Lux with IR
    Frame RateTVI: 8 MP @12.5 fps, 8 MP @15 fps, 4 MP @25 fps, 4 MP @30fps, 2 MP @25 fps, 2 MP @30 fps
    AHD: 8MP@15fps
    CVI: 8MP@12.5fps, 8MP@15fps
    CVBS: PAL/NTSC
    Supplement Light typeWhite Light & IR
    Wide Dynamic RangeDigital WDR
    IR Cut FilterYes
    Video Resolution 3840 (H) × 2160 (V)
    Lens 2.8mm
    Angle of View 2.8 mm, horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 127°
    Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
    Supplement Light Range IR : Up to 25 m, white Light : Up to 20 m
    Audio /
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    CS1ES General
    HousingPlastic & Metal ColorWhite
    Operating PowerDC12V Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H)84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35") WeightApprox. 230 g (0.51 lb.)
    HousingPlastic & Metal
    Operating PowerDC12V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)84.6 mm × Ø 85.02 mm (3.33" × Ø 3.35")
    Color White
    Operating Temperature -40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof Rating IP67
    Weight Approx. 230 g (0.51 lb.)
