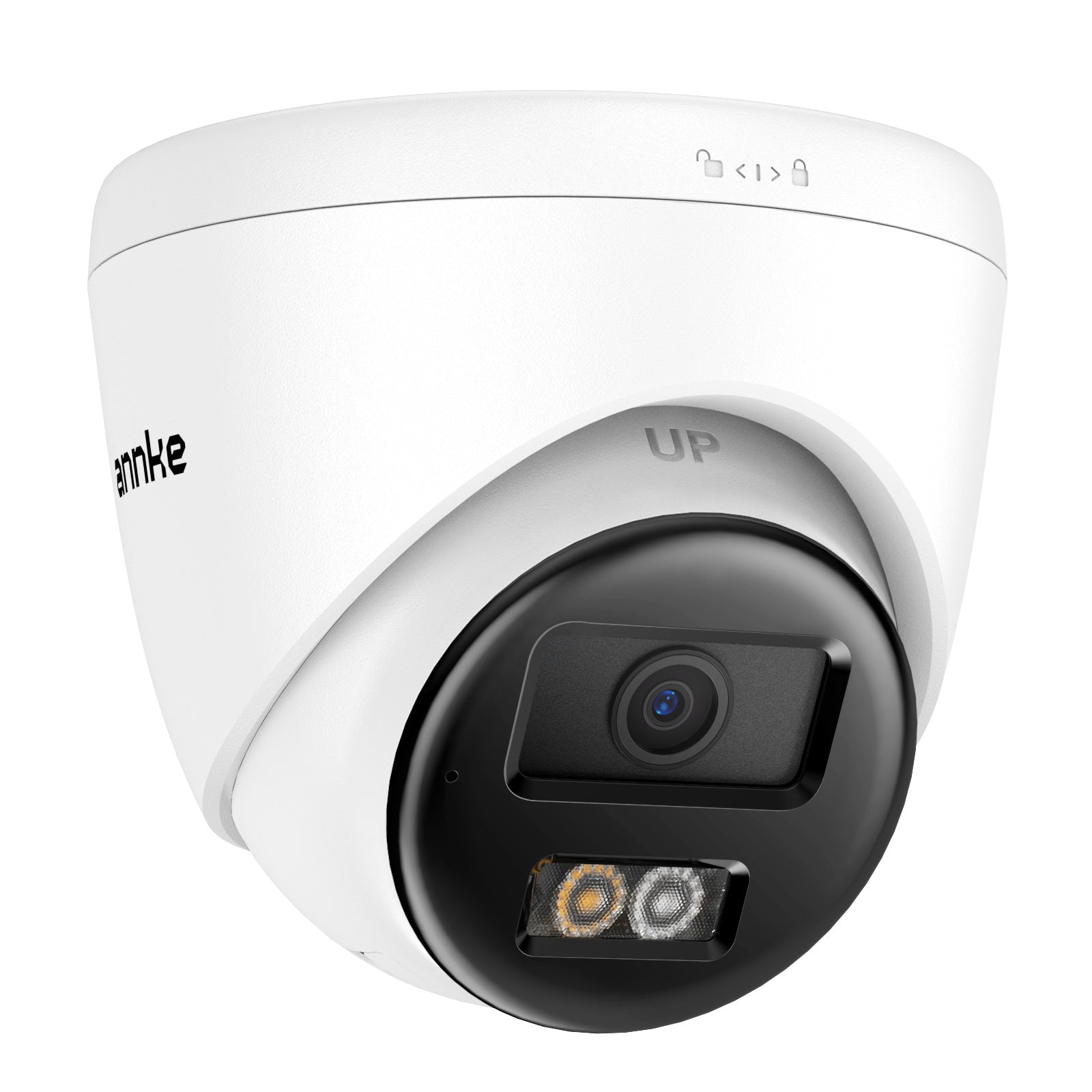

IP Camera
Camera Image Sensor 1/3" Progressive Scan CMOS
Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream "50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)"
Substream "50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)"
Video Compression "Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG"
Video Bitrate 32 Kbps - 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Input Built-in microphone, record with audio
Audio Output Built-in Speaker, max. sound pressure level: 10 cm: 95 dB
Lens 2.8 mm
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of View Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Supplement Light Type Smart Dual-Light, IR, White Light
Supplement Light Range IR: up to 30 m, wite Light: up to 30 m
Motion Detection 2.0 Supoort, include Human & Vehicle detection
Flashing Light Alarm High/Medium/Low Frequency/Normally On
Audio Alarm Warning/Prompt
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API Open Network Video Interface Version 19.12
Region of Interest (ROI) 1 fixed region for main stream
Privacy Mask 4 programmable polygon privacy masks
General Function Mirror,rotate,password protection, remote access
Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
General Housing Metal & Plastic
Color White
Storage Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset Yes
Operating Power DC 12 V± 25%, max. 7.5 W; PoE (802.3af), max. 9 W
Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use Indoor/Outdoor
Interface Protection IP67
Dimension (L X W X H) Ø 110 mm × 102.7 mm (Ø 4.33" × 4.04")
Weight Approx. 340 g (0.7 lb.)
